Overview

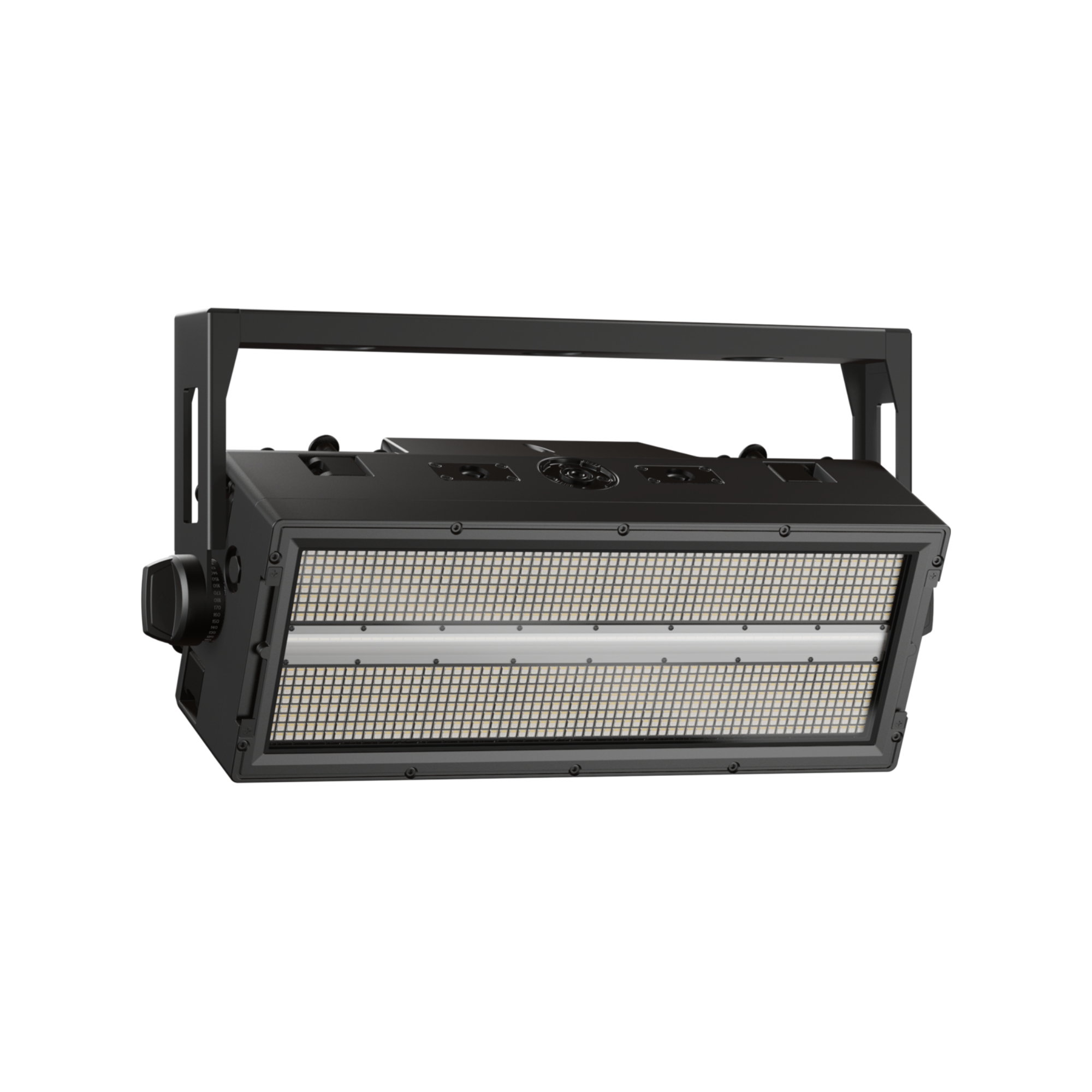

The Prolights Sunblast FLX is a high-output IP65-rated hybrid LED fixture designed for professional stage, festival, broadcast, and large-scale event production. It combines the impact of a powerful strobe with the versatility of a high-output wash light, delivering extreme brightness and advanced pixel-mapped creative control in a single modular system.
Engineered for demanding environments, the Sunblast FLX features a dual-engine design: a central white LED beam strip that recreates the classic xenon-style strobe effect, and a high-density RGB + Warm White LED panel that provides rich colour mixing and smooth wash lighting. This hybrid architecture allows it to function as both a strobe blinder and a dynamic pixel wash fixture.
With 28 individually controllable pixel zones (16 RGB+WW + 12 white LED segments), the fixture enables advanced visual programming, including chase effects, animations, and custom pixel mapping. Its high peak output of up to 1200W in strobe mode ensures maximum impact in large venues and outdoor festivals.
Built for professional touring use, the Sunblast FLX includes IP65 protection, wireless DMX (CRMX/W-DMX), and full support for modern networked protocols, making it a flexible and reliable solution for complex lighting designs.
Key Features
• IP65-rated hybrid LED strobe and wash light
• Dual-engine design: white LED beam + RGB + Warm White wash panel
• Peak output up to 1200W in strobe mode, 400W continuous wash
• 28 independently controllable pixel zones (16 + 12 layout)
• High-output strobe effect with xenon-style beam simulation
• Advanced pixel mapping with FX generator and dynamic patterns
• Fully weather-resistant for outdoor festivals and touring rigs
• Tool-free rigging system for fast vertical or horizontal deployment
• Integrated CRMX wireless DMX control (W-DMX compatible)
• Supports DMX, RDM, Art-Net, and sACN protocols
• Ideal for festivals, concerts, broadcast, and large-scale productions
Specifications
• Field angle: up to 155°
• Pixel control: 28 zones (16 RGB+WW + 12 white LED)
• Colour system: RGB + Warm White + White LED hybrid system
• CCT range: 2,800K – 10,000K
• Control protocols: DMX512, RDM, Art-Net, sACN, CRMX
• Wireless DMX: integrated LumenRadio CRMX receiver
• DMX channels: modular architecture (multiple selectable modes)
• Dimmer: 0–100% electronic, 16-bit resolution
• Strobe: up to 30 Hz
• Power supply: 100–240V AC, 50/60Hz
• Power consumption: up to 1200W peak (strobe mode)
• IP rating: IP65 (temporary outdoor use)
• Weight: approx. 11.6 kg
• Housing: die-cast magnesium alloy, weatherproof construction
• Cooling: low-noise forced-air system
Light Source
• 60 × 12W white LEDs (beam section)
• 1,024 × 1.2W RGB + Warm White LEDs (plate section)
Max Output
• Up to 108,526 lm (strobe mode combined)
Luminous Flux (wash mode)
• Plate: ~32,771 lm
• Beam: ~45,170 lm
• Combined: ~40,507 lm
Beam Angle
• Plate: 112°
• Beam: 49° × 130°
What’s in the Box
• 1 × Prolights Sunblast FLX fixture
• 1 × Mounting bracket system (Quick-Lock compatible)
• 1 × Power cable (Seetronic powerCON TRUE1 IP65, bare end)
• User manual / documentation
