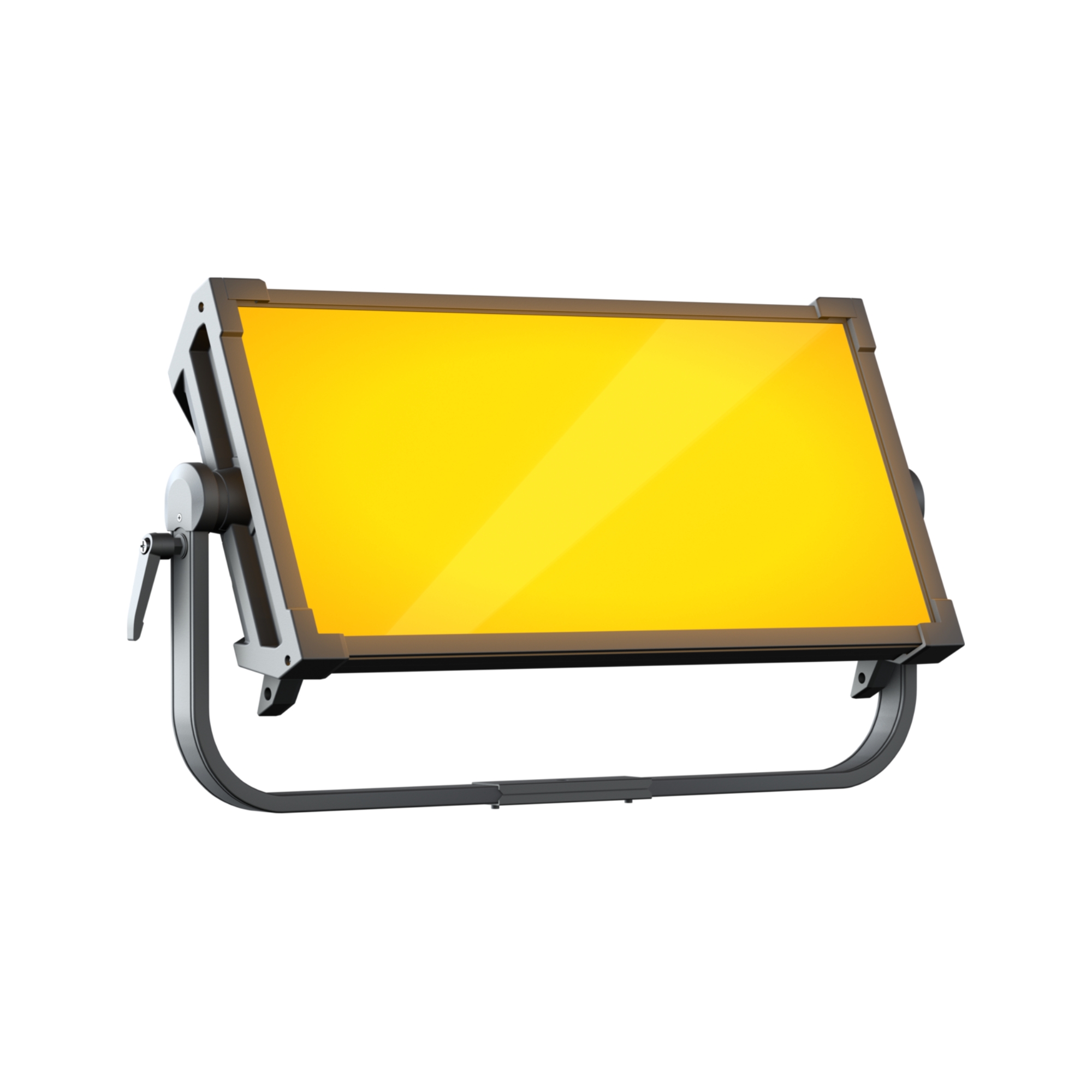

Prolights EclPanel TWC

Overview

The Prolights EclPanel TWC is a professional 2x1 LED soft light designed for high-end film, television, broadcast, and studio applications. It delivers a large, soft light source with exceptional colour accuracy and full-spectrum control, making it a versatile tool for cinematographers and lighting designers.

Powered by a 740W RGB + Warm White LED engine (operating at 430W), the EclPanel TWC produces smooth, high-quality illumination with outstanding colour rendering. It offers a wide tunable white range from 2,200K to 15,000K, with precise green-magenta adjustment for accurate matching to other light sources on set.

The fixture features advanced 8-zone pixel control, enabling dynamic lighting effects and creative visual design directly from the panel or lighting console. Its intuitive onboard control system includes rotary knobs for quick access to CCT, HSI, and FX modes, making it highly efficient for fast-paced production environments.

Designed for professional workflows, the EclPanel TWC supports DMX512, RDM, W-DMX, and CRMX wireless control, allowing seamless integration into modern lighting systems. Despite its high output, it maintains silent operation with configurable fan modes, making it ideal for sound-sensitive environments such as interviews and broadcast studios.

Key Features
• Professional LED soft panel for film, TV, and broadcast use
• 740W RGB + Warm White LED engine (operated at 430W)
• High colour accuracy with CRI > 95, TLCI > 92
• Wide tunable white range: 2,200K – 15,000K
• 8-zone pixel control for dynamic lighting effects
• Onboard FX engine with cinematic lighting presets
• Intuitive rotary controls: CCT, HSI, FX modes
• +/- green correction for precise colour matching
• Silent operation with multiple fan modes
• Integrated CRMX and W-DMX wireless DMX support
• Supports DMX512 and RDM protocols
• Lightweight, studio-friendly 2x1 form factor

Specifications
• Light source: 740W RGB + Warm White LED (operating at 430W)
• Colour temperature: 2,200K – 15,000K
• CRI: > 95.5
• TLCI: > 92
• Beam angle: 102°
• Luminous flux: approx. 34,236 lm @ 4000K
• Control protocols: DMX512, RDM, W-DMX, CRMX
• Pixel control: 8 independently controllable sections
• Power supply: 100–240V AC, 50/60Hz
• Power consumption: approx. 460W max
• IP rating: IP20 (indoor use)
• Weight: approx. 15.3 kg
• Housing: die-cast aluminium body

What’s in the Box
• Prolights EclPanel TWC fixture
• Power cable (Seetronic powerCON TRUE1 compatible)
• Diffusion filter (medium density)
• Mounting bracket / yoke
• User manual / documentation

Why we stock it

Hand-picked for its build quality, service backup, and on-set reliability. Talk to our team for kit-list recommendations.

Technical specifications

• RangeECL
• Colour ModeBi-Colour
• TypePanel Lights
