Overview

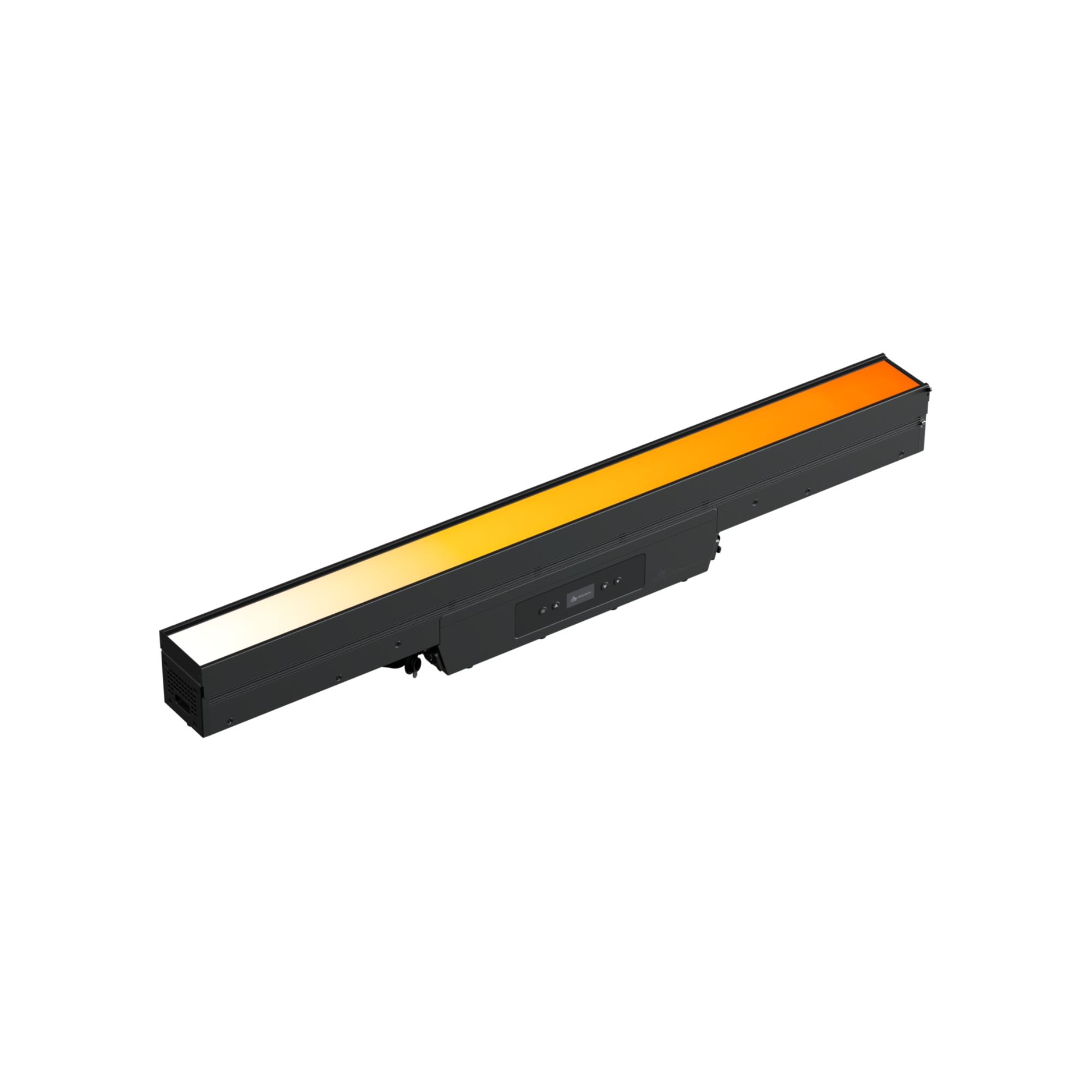

The Prolights EclSoft LinearIP is a professional IP65-rated linear soft light designed for film, television, broadcast, and live production environments. It combines the output and colour quality of the EclPanel range with a rugged, weather-resistant linear form factor, making it ideal for both indoor studio use and demanding outdoor applications.
Powered by a 230W RGB + Warm White LED engine, the EclSoft LinearIP delivers high-quality, evenly mixed light with a luminous output of nearly 13,000 lumens. It produces accurate white tones from tungsten to daylight while maintaining excellent colour rendering performance, making it suitable for camera-facing applications.
The fixture features 15 individually controllable pixel zones, enabling advanced lighting effects, gradients, and dynamic movement directly from a lighting console or its built-in effects engine. This makes it a versatile tool for creative lighting design in both static and motion-based productions.
With full support for DMX, RDM, Art-Net, sACN, and CRMX wireless DMX, the EclSoft LinearIP integrates seamlessly into modern lighting control systems. Its IP65-rated housing ensures reliable operation in challenging environments, while its lightweight aluminium body and integrated power supply make it practical for fast deployment.
Key Features
• IP65-rated linear LED soft light for indoor and outdoor use
• 230W RGB + Warm White LED engine
• High output of approximately 13,000 lumens
• 15 individually controllable pixel sections
• Built-in cinematic effects engine with programmable patterns
• Full colour control: RGB, RGBW, CMY, HSI, XY, CCT, and gel emulation
• CCT range from 2,800K to 10,000K with green/magenta adjustment
• High colour accuracy (CRI > 92, TLCI > 87)
• Integrated CRMX wireless DMX receiver
• Supports DMX512, RDM, Art-Net, and sACN protocols
• IP65-rated construction for temporary outdoor use
• Lightweight and rugged die-cast aluminium housing
Specifications
• Light source: 230W RGB + Warm White LED
• Luminous flux: approx. 12,994 lm @ 4,000K
• Beam angle: 103°
• Field angle: 155°
• CRI: >92
• R9: >96
• TLCI: >87
• TM-30 Rf: ~91
• TM-30 Rg: ~106–107
• Pixel control: 15 independent zones
• Control protocols: DMX512, RDM, Art-Net, sACN, CRMX
• Wireless control: LumenRadio Timo Fx (CRMX / W-DMX compatible)
• Power supply: 100–240V AC, 50/60Hz
• Max power consumption: approx. 250W
• Housing: die-cast aluminium
• IP rating: IP65 (temporary outdoor use)
• Operating temperature: -20°C to +45°C
• Weight: approx. 7.1 kg
• Dimensions: 1000 × 143 × 87 mm
What’s in the Box
• Prolights EclSoft LinearIP fixture
• 1 × Medium density diffusion filter
• 2 × Omega mounting brackets
• Power cable (Seetronic powerCON TRUE1 IP65, bare end)
• User manual / documentation
