Overview

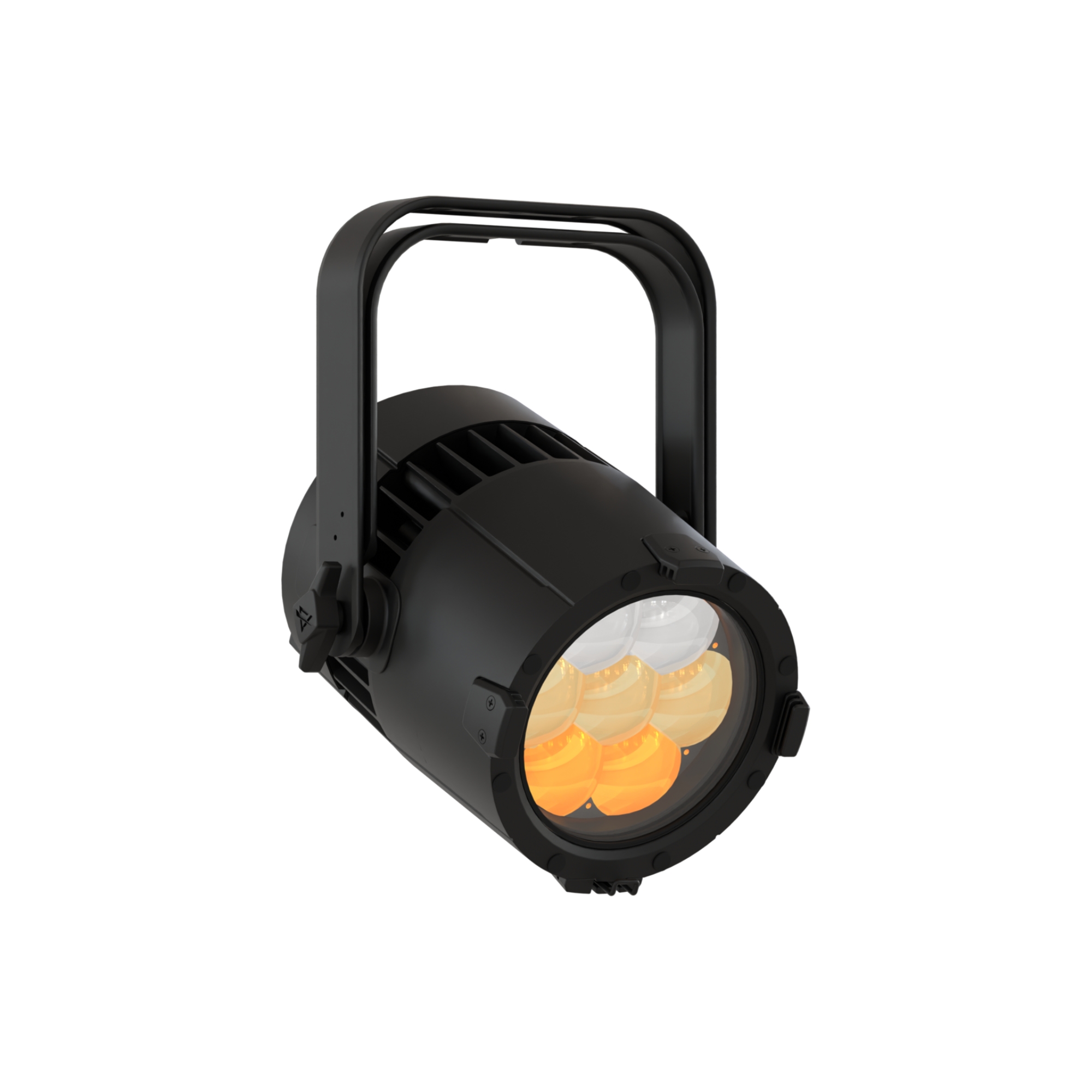

The Prolights Astra PAR7ZIP is a high-performance IP65-rated LED PAR fixture designed for professional lighting applications across live events, broadcast, film, and architectural environments. Combining powerful RGB + warm white output with advanced colour control and motorised zoom, it delivers exceptional versatility for both indoor and outdoor use.
At its core, the Astra PAR7ZIP features a 7 × 40W Spektra-calibrated LED engine, providing accurate colour rendering and high-quality white light with excellent CRI and TLCI performance. This makes it particularly suitable for camera-facing environments where colour accuracy is critical.
The motorised zoom system offers a wide 4.5° to 53° beam range, allowing designers to switch seamlessly between tight beam effects and wide washes. With integrated pixel control, built-in effects, and precise CCT adjustment, the fixture gives full creative flexibility for dynamic lighting design.
Designed for modern workflows, the Astra PAR7ZIP includes built-in CRMX wireless DMX, enabling cable-free control and faster deployment on set or on location. Its robust IP65-rated construction ensures reliable operation in demanding weather conditions, making it a dependable solution for touring, festivals, and outdoor productions.
Key Features
• IP65-rated LED PAR for indoor and temporary outdoor use
• 7 × 40W RGB + Warm White Spektra-calibrated LEDs
• High colour accuracy with strong CRI and TLCI performance
• Motorised zoom range from 4.5° to 53°
• Full colour control with RGBW mixing and CCT adjustment (2,800K – 10,000K)
• Integrated pixel control with dynamic onboard effects
• Built-in CRMX wireless DMX transceiver for cable-free operation
• Supports DMX512 and RDM protocols
• Flicker-free operation with adjustable PWM (600–50,000 Hz)
• Compact and robust IP65 housing for demanding environments
• Suitable for live events, film, TV, theatre, and architectural lighting
Specifications
• Light source: 7 × 40W RGB + Warm White LEDs
• Beam angle: 4.5° – 53° motorised zoom
• Luminous output: up to approx. 2,604 lm (wide mode)
• Lux output: up to approx. 12,541 lx @ 5 m (narrow mode)
• CRI: up to approx. 94.8
• Control protocols: DMX512, RDM, CRMX
• DMX channels: 1 / 2 / 6 / 12 / 14 / 21 / 33
• Pixel control: ring and pixel-to-pixel modes
• Power supply: 100–240V AC, 50/60Hz
• Power consumption: max. 263W
• IP rating: IP65 (temporary outdoor use)
• Operating temperature: -20°C to +45°C
• Dimensions: 291 × 347 × 300 mm
• Weight: approx. 9.3 kg
What’s in the Box
• Prolights Astra PAR7ZIP fixture
• Power cable (1.5m, Seetronic powerCON TRUE1 IP65, bare end)
• User documentation / safety guide
