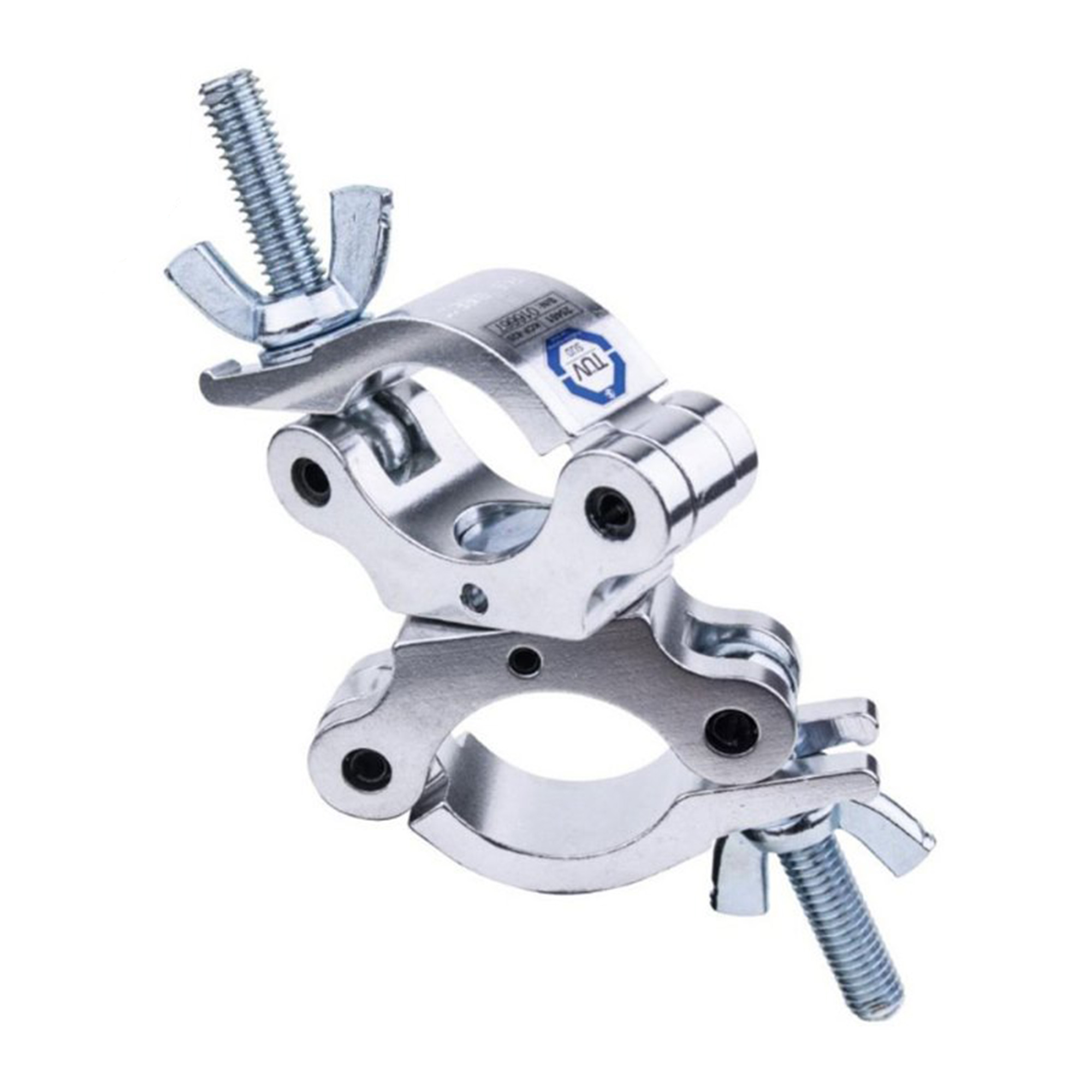

Kupo Slim Type Half Swivel Coupler (KCP-820)

Overview

The Kupo KCP-820 Slim Type Half Swivel Coupler is a professional heavy-duty rigging clamp designed for connecting truss, pipes, and structural tubing in film, television, stage, and installation environments.

It is built as a low-profile swivel coupler, meaning it can rotate a full 360°, allowing flexible positioning when joining two tubes or creating angled structural connections. A drift pin is included, which allows the coupler to be locked at a fixed 90° position when needed.

The slim design (only around 30 mm wide) makes it ideal for installations where space is limited between truss elements, while still maintaining high structural strength.

Constructed from high tensile 6061-T6 aluminium alloy, it is both lightweight and extremely strong. It is designed to fit standard industry tubing sizes of 48–51 mm (1.89"–2.0") and is certified for professional use with a very high safe working load.

Key Features
• Slim profile swivel coupler for truss and pipe systems
• 360° rotation for flexible rigging configurations
• Can be locked at 90° using included drift pin
• Designed for tubes with 48–51 mm diameter
• Narrow body design fits between truss webs
• High-strength 6061-T6 aluminium construction
• Lightweight yet heavy-duty professional rigging solution
• Ideal for stage, film, and studio installations

Specifications
• Model: KCP-820
• Product Type: Slim Type Half Swivel Coupler
• Material: High tensile 6061-T6 aluminium alloy
• Finish: Silver
• Weight: 0.7 kg
• Load Capacity: up to 300 kg (660 lbs)
• Tube Compatibility: 48–51 mm diameter
• Rotation: 360° swivel
• Locking: Drift pin for 90° fixed position
• Application: Truss systems, pipes, structural rigging

What’s in the Box
• Kupo Slim Type Half Swivel Coupler (KCP-820)
• Integrated swivel body
• Drift pin for fixed-angle locking
