Overview

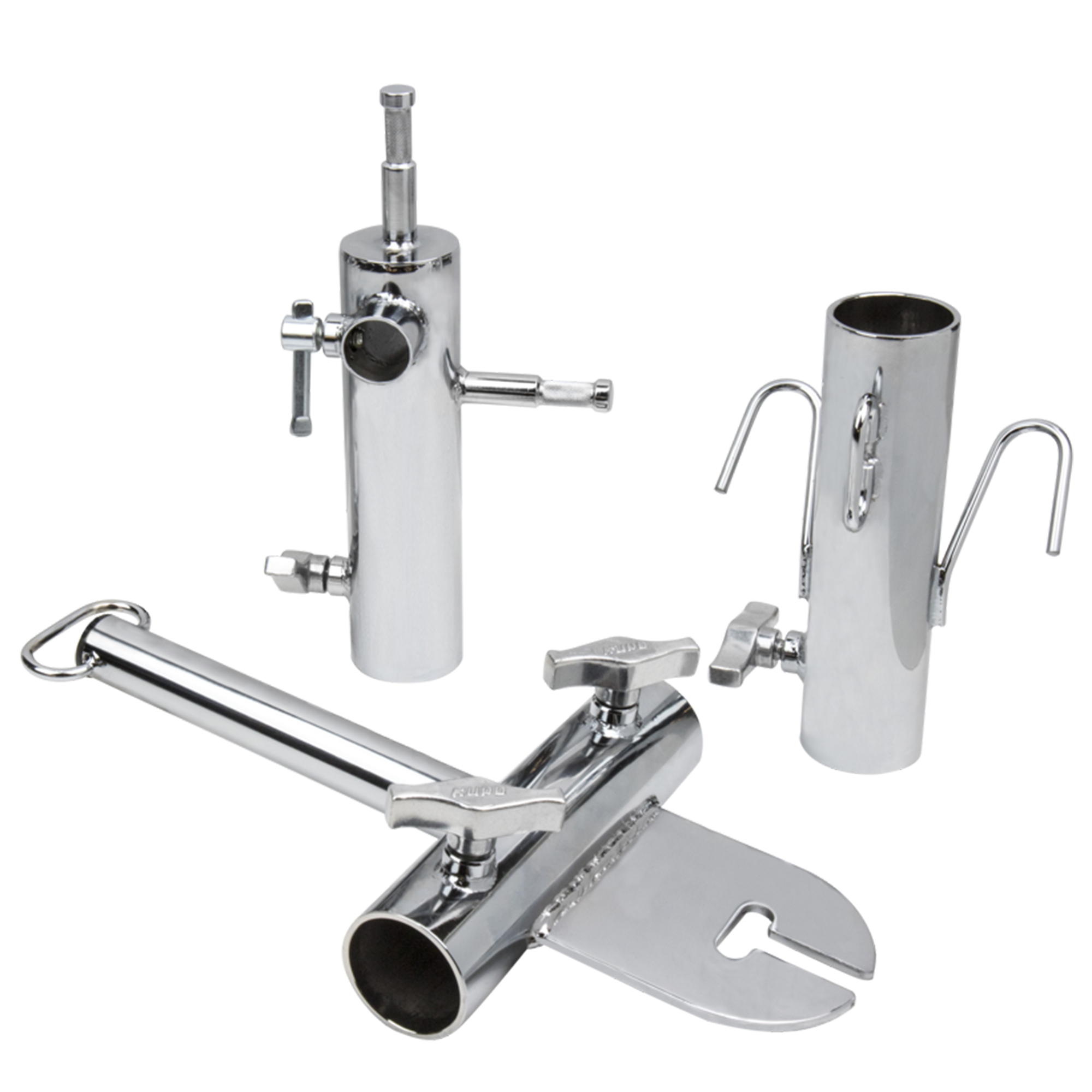

The Kupo KCP-612 Single Pipe Boom Rig Kit is a professional pipe boom system, also known as a Menace Arm, designed to position lighting fixtures and grip equipment away from the supporting stand. This makes it particularly useful when the stand needs to remain outside the camera frame while the light or accessory is positioned precisely where it is needed.
The KCP-612 is designed to work with standard 1-1/2" Schedule 40 pipe, with an outside diameter of 48.3 mm. The single-pipe design allows the boom length to be customised according to the length of pipe used, making the system adaptable to different production requirements.
The front adapter incorporates a swivel 16 mm Baby stud and 28 mm Junior receiver, providing flexible mounting options for lighting fixtures and grip accessories such as flags and frames. The mounting point can be positioned at different angles to help achieve the required lighting or rigging setup.
For additional stability, the rear adapter features two welded hooks designed to hang over sandbags. A D-ring is also provided for connecting a ratchet strap between the front, centre and rear sections of the boom system.
The joint pipe adapter uses dual knobs to securely clamp the pipe from both sides. A captive locking knob prevents the knob from coming away from the adapter even when completely unscrewed, while the included safety wire and linchpin provide an additional level of security.
The KCP-612 is constructed from steel and finished in silver. The kit itself weighs approximately 6 kg, while the maximum boom length depends on the length of the customised pipe used. As with any boom system, the lighting fixture and counterweight must be properly balanced before use.
Key Features
• Professional single-pipe boom rig, also known as a Menace Arm
• Designed to position lighting while keeping the supporting stand out of shot
• Compatible with standard 1-1/2" Schedule 40 pipe
• Suitable for pipe with a 48.3 mm outside diameter
• Single-pipe adapter design
• Front adapter with swivel 16 mm Baby stud and 28 mm Junior receiver
• Allows lighting fixtures and grip accessories to be mounted at different angles
• Rear adapter features two welded hooks for hanging over sandbags
• D-rings provided for ratchet strap connections
• Joint pipe adapter features dual knobs for secure pipe mounting
• Captive locking knob prevents the knob from coming off when fully unscrewed
• Safety wire with linchpin provides additional security
• Steel construction
• Silver finish
• Boom length can be customised according to the length of pipe used
Specifications
• Brand: Kupo
• Model: KCP-612
• Product Type: Single Pipe Boom Rig Kit
• Also Known As: Menace Arm
• Material: Steel
• Colour: Silver
• Compatible Pipe: 1-1/2" Schedule 40
• Compatible Pipe Outside Diameter: 48.3 mm
• Adapter Design: Single pipe
• Stand Top: Swivel 16 mm Baby stud and 28 mm Junior receiver
• Maximum Extended Length: Depends on customised pipe length
• Weight: 6 kg
• Optional Accessories: KCP-440 4.5" Grip Head, RS-RS2550 Ratchet Strap, Stand Bag
What's in the Box
• Kupo Single Pipe Boom Rig Kit KCP-612
• Front adapter with 16 mm Baby stud and 28 mm Junior receiver
• Centre adapter with T-slot ear
• Joint pipe adapter
• Rear adapter with dual sandbag hooks
• Safety wire with linchpin
