Overview

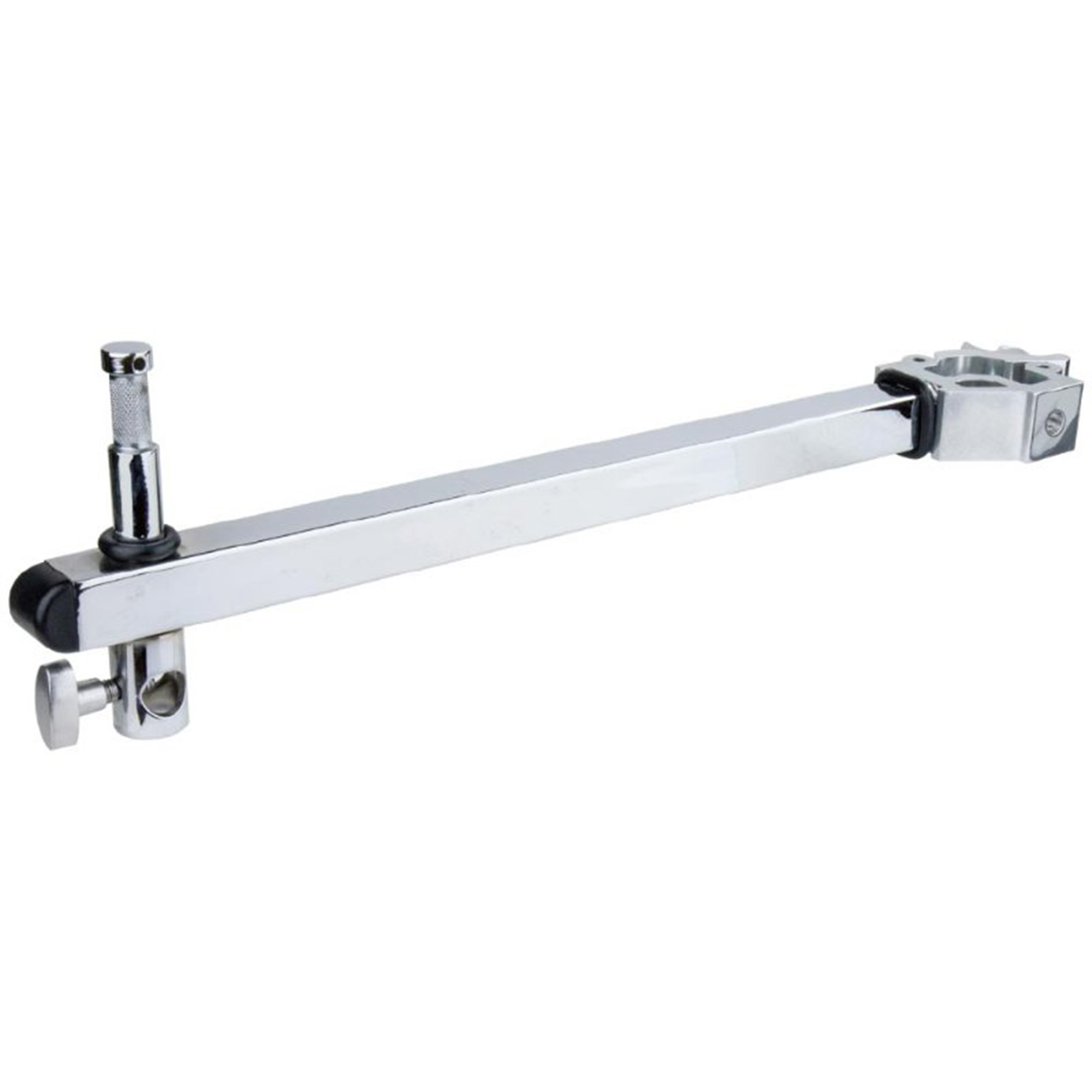

The Kupo KCP-806 Side Arm with Baby Pin Receiver is a professional heavy-duty rigging arm designed for offset mounting of lighting fixtures and accessories on C-stands, light stands, and studio rigging systems in film, television, photography, and broadcast environments.
It functions as an extension arm that allows you to position a light or accessory away from the main stand column, creating more flexible placement options without needing an additional stand. This is especially useful for lowering fixtures, creating side lighting, or mounting additional gear in tight studio setups.
The arm is built from high-tensile 6061-T6 aluminium alloy combined with alloy steel components, giving it a strong yet relatively lightweight structure. It is designed to clamp onto tubes ranging from 32–38 mm, including standard C-stand risers.
At the end of the arm, it features both a 16 mm (5/8") baby pin and a baby receiver, allowing compatibility with a wide range of lighting fixtures and grip accessories. The dual-end configuration provides flexible mounting options for both male and female baby fittings.
A key advantage of this design is its approx. 445 mm offset extension, which allows controlled repositioning of lights without moving the main stand. It also supports loads up to 20 kg, making it suitable for professional lighting setups.
Key Features
• Professional side arm for offset lighting and rigging
• Designed for C-stands and tubes 32–38 mm in diameter
• Dual mounting system: 16 mm baby pin + baby receiver
• Approx. 445 mm offset extension for flexible positioning
• Heavy-duty aluminium and steel construction
• Supports loads up to 20 kg
• Enables multi-light setups from a single stand
• Ideal for studio, film, and photography applications
Specifications
• Model: KCP-806
• Product Type: Side Arm with Baby Pin / Receiver
• Material: 6061-T6 aluminium alloy and alloy steel
• Finish: Silver
• Weight: ~1.8–2.2 kg (varies by source)
• Load Capacity: 20 kg
• Length: 445 mm
• Tube Compatibility: 32–38 mm diameter
• Mounting: 16 mm (5/8") baby pin + baby receiver
• Application: Side lighting, offset mounting, multi-light rigging
What’s in the Box
• Kupo Side Arm (KCP-806)
• Integrated 16 mm baby pin
• Integrated baby receiver
• Clamp assembly for stand mounting
