Overview

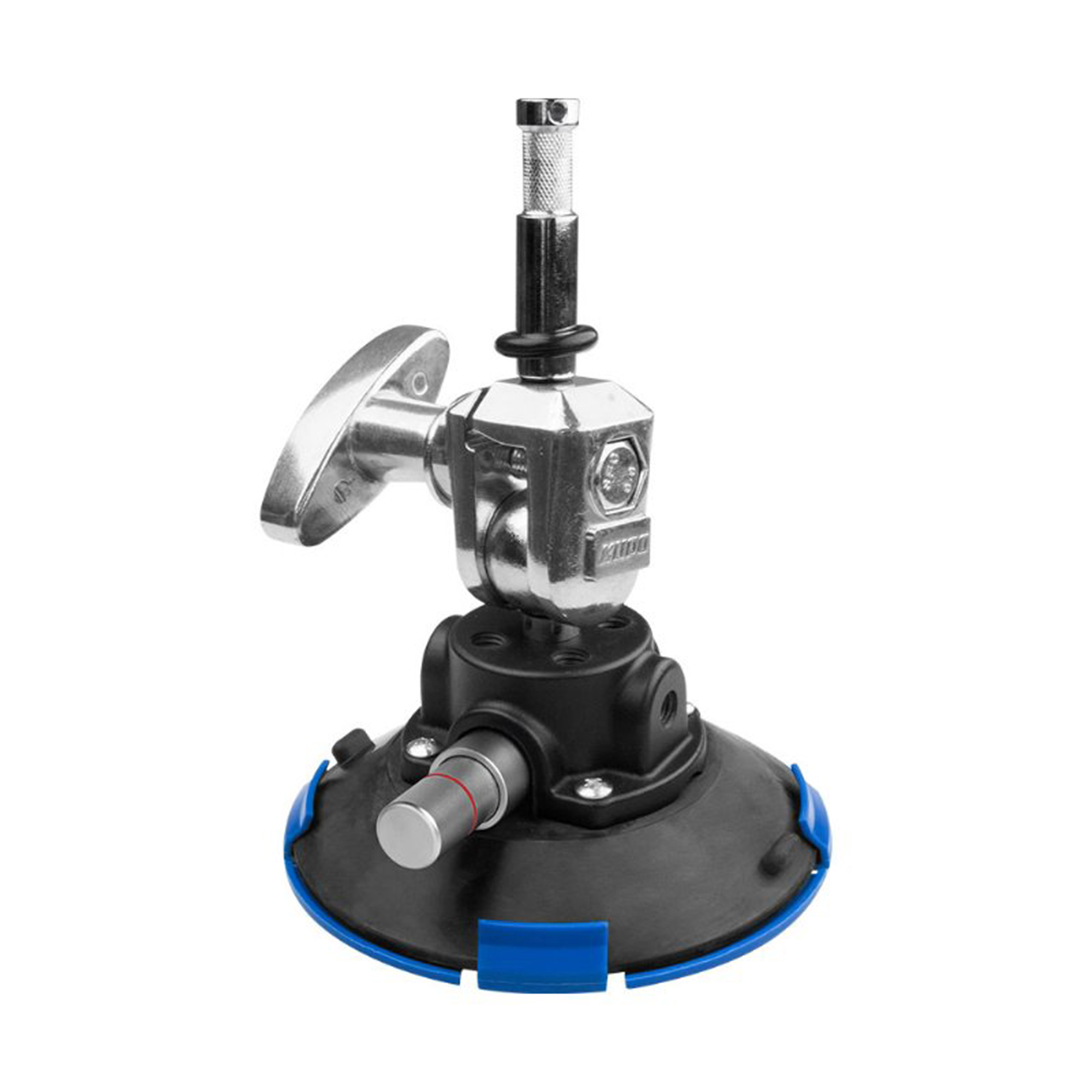

The Kupo KSC-06MP Suction Cup with Swivel Baby Pin is designed to provide a secure, temporary mounting point for lighting, camera and production equipment when working on smooth, non-porous surfaces.

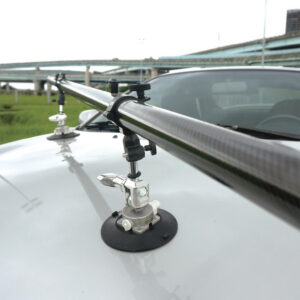

The 6-inch suction cup is suitable for applications including vehicle panels, windows, mirrors and boats, making it particularly useful for film, television, photography and car-rigging setups. Its pumping mechanism creates the vacuum needed to hold the cup securely against a suitable surface.
A swivel 16 mm (5/8") Baby pin is permanently attached to the suction cup, allowing compatible lighting fixtures and grip accessories to be mounted while giving you additional flexibility when positioning the equipment.
The suction cup features a metal plunger rather than a plastic one, providing improved durability and resistance to heat and chemicals. A red-line indicator provides a visual warning if the vacuum begins to weaken, which is useful when working in demanding production environments.

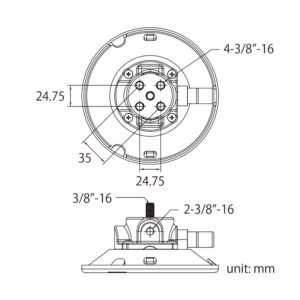

An aluminium mounting block provides six 3/8"-16 threaded mounting points around three sides, giving you additional options for attaching compatible accessories or building a more complex rig.
The KSC-06MP has a 13 kg maximum loading capacity and weighs 1 kg. A suction cup pad protector is supplied to help protect the cup when it is not in use.
Key Features
• Professional pumping suction cup for temporary equipment mounting
• 6-inch (15.24 cm) suction cup
• Fixed swivel 16 mm (5/8") Baby pin
• Allows flexible positioning of mounted equipment
• Suitable for lights, cameras and other production equipment
• Ideal for smooth, non-porous surfaces
• Suitable for vehicles, windows, mirrors, boats and similar applications
• Durable rubber suction cup construction
• Metal plunger for improved durability and resistance to heat and chemicals
• Red-line indicator helps warn of vacuum loss
• Aluminium mounting block with six 3/8"-16 threaded points
• Maximum loading capacity of 13 kg
• Supplied with suction cup pad protector
Specifications
• Brand: Kupo
• Model: KSC-06MP
• Product Type: Suction Cup with Swivel Baby Pin
• Material: Rubber, aluminium and plastic
• Colour: Black
• Suction Cup Diameter: 6" / 15.24 cm
• Plunger: Metal
• Mounting: 16 mm (5/8") swivel Baby pin
• Threaded Mounting Points: 6 × 3/8"-16
• Maximum Load: 13 kg
• Weight: 1 kg
• Operating Temperature: -12°C to 49°C
• Vacuum Indicator: Red-line indicator
• Pad Protector: Included
What's in the Box
• Kupo Suction Cup with Swivel Baby Pin KSC-06MP
• Suction Cup Pad Protector
