Prolights Astra Blade100IP

Overview

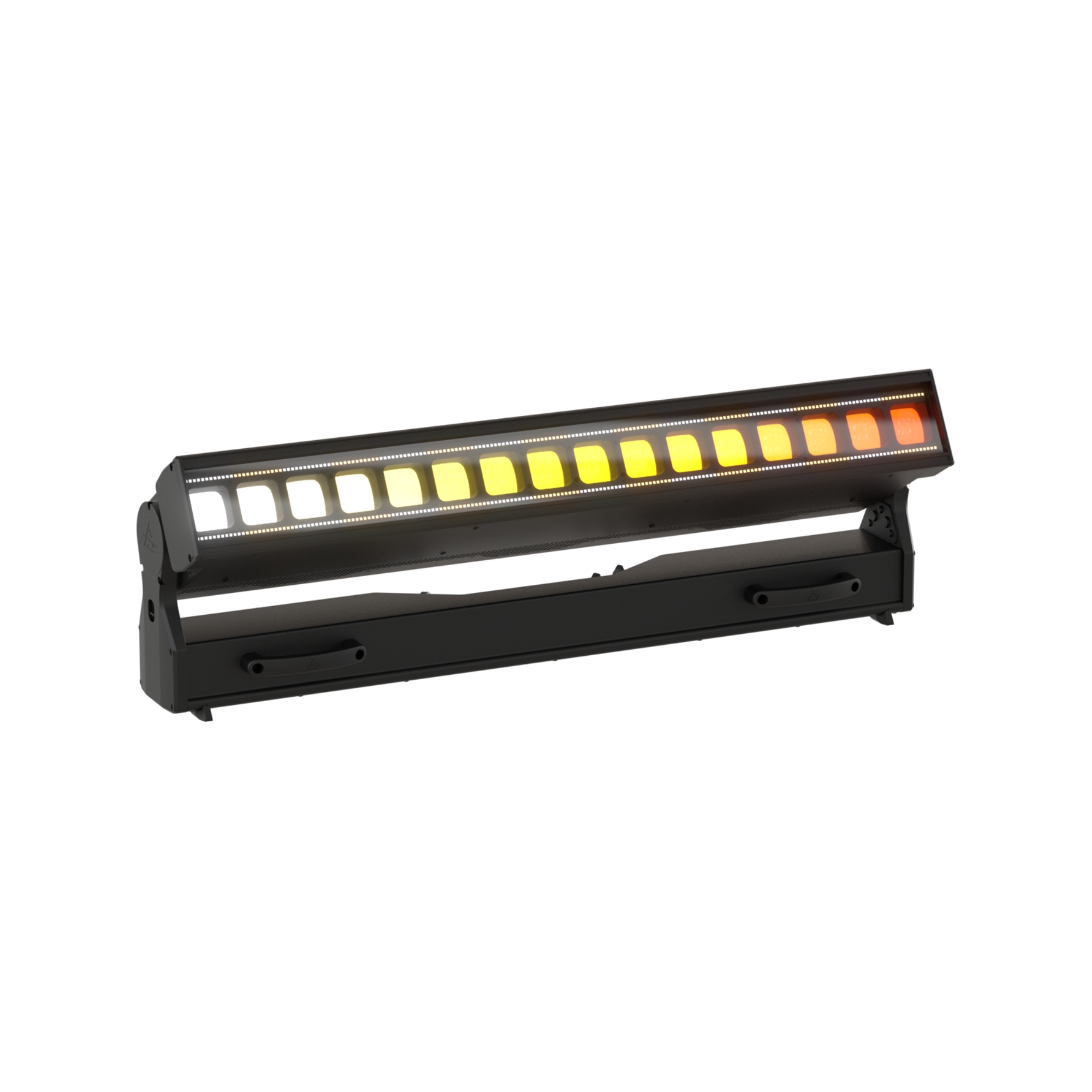

The Prolights Astra Blade100IP is a professional-grade, IP65-rated 1-metre motorised LED batten designed for high-output lighting, precision beam shaping, and advanced pixel control in demanding production environments. It combines powerful RGBW output with dual-side pixel LED strips, making it ideal for concert lighting, broadcast sets, architectural lighting, and large-scale live events.

Equipped with 16 high-output 40W RGBW Osram Ostar LEDs, the Astra Blade delivers intense brightness and exceptional colour mixing. Its motorised zoom system allows smooth beam adjustment from narrow aerial effects to wide, even washes, giving lighting designers full creative control from a single fixture.

The fixture also features motorised tilt control and full pixel mapping across both the main LED array and side strips, enabling dynamic chase effects, gradients, and immersive visual design. With IP65 protection, it is suitable for both indoor and temporary outdoor use, ensuring reliability in touring and festival conditions.

Advanced control options include DMX, RDM, Art-Net, sACN, and integrated CRMX wireless compatibility, allowing seamless integration into modern lighting networks.

Key Features
• IP65-rated 1m motorised LED batten for indoor and temporary outdoor use
• 16 x 40W RGBW Osram Ostar LEDs for high-output illumination
• Dual-side variable white LED strips with pixel control (32 zones total)
• Motorised zoom system (narrow beam to wide wash)
• Motorised tilt movement for dynamic positioning
• Full pixel mapping across main LEDs and side strips
• Advanced colour control: RGBW, CCT, HSI, and colour macros
• Smooth 16-bit dimming for flicker-free performance
• Integrated CRMX wireless DMX support
• Compatible with DMX512, RDM, Art-Net, and sACN protocols
• IP65-rated construction for touring and outdoor environments
• Weather-resistant magnesium alloy housing

Specifications
• Light source: 16 × 40W RGBW Osram Ostar LEDs
• Additional light source: 2 × variable white LED strips (32 pixel zones total)
• Beam angle: approx. 4.3° – 39.4° motorised zoom range
• Control protocols: DMX512, RDM, Art-Net, sACN, CRMX
• Pixel control: 16 main pixels + 32 strip pixels
• Movement: Motorised tilt (200° range)
• IP rating: IP65 (temporary outdoor use)
• Housing: Die-cast magnesium alloy weatherproof construction
• Power supply: 100–240V AC, 50/60Hz
• Power consumption: up to approx. 750W (wash mode)
• Weight: approx. 27.4 kg
• Dimensions: 996 × 336 × 175 mm

What’s in the Box
• Prolights Astra Blade100IP fixture
• 2 × Omega quick-lock mounting brackets
• Power cable (Seetronic powerCON TRUE1, bare end)
• User manual / quick start guide
