Overview

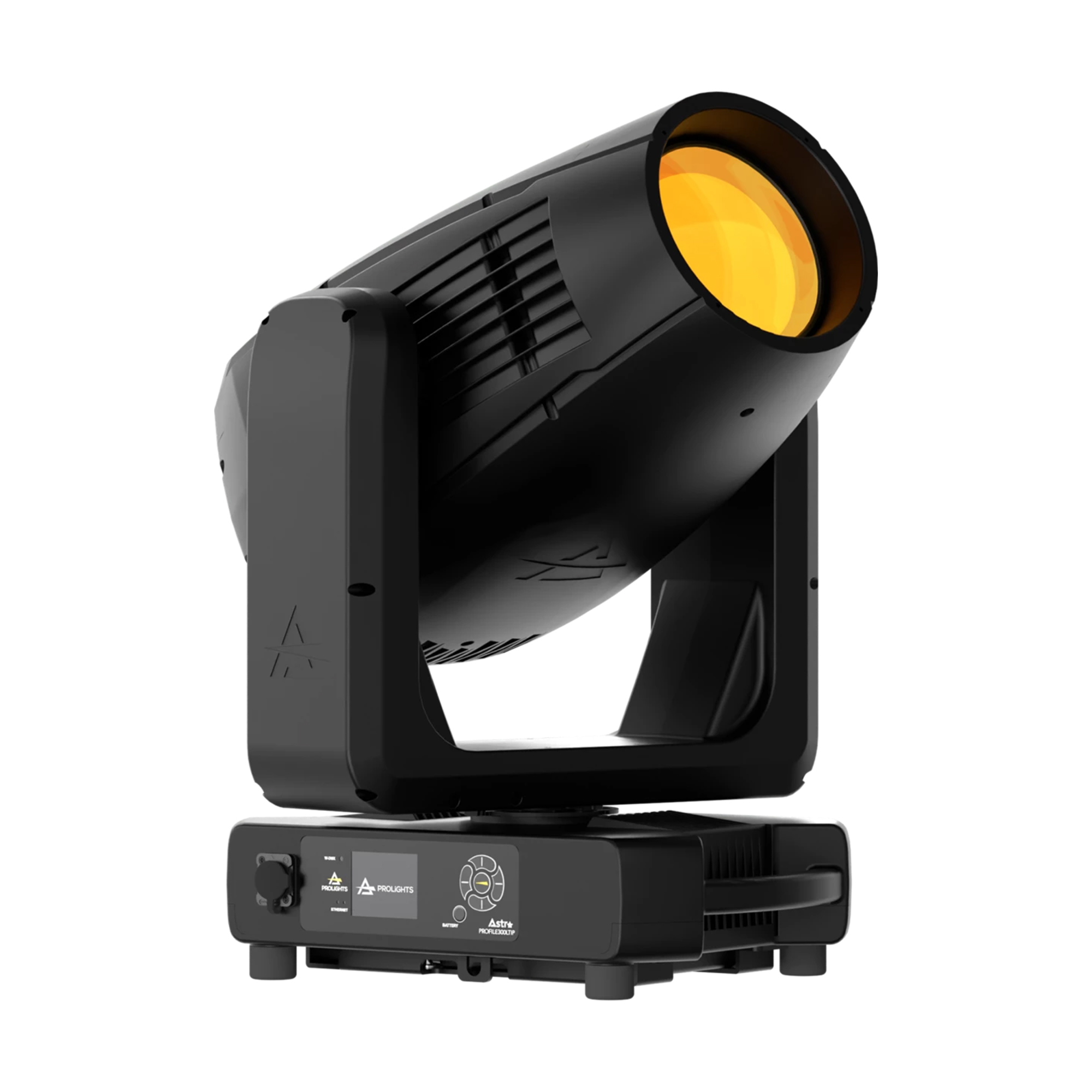

The Prolights Astra Profile300LTIP is a compact long-throw LED moving profile engineered to deliver reliable, high-performance lighting in both indoor and outdoor environments. Featuring a powerful 300W white LED source, it produces up to 12,000 lumens, providing impressive brightness while maintaining a compact, lightweight design with a robust IP65-rated weatherproof housing.
Its advanced optical system combines a 135mm front lens with a 3.9°–44.1° motorised linear zoom, delivering crisp projections, uniform beam quality and excellent long-throw performance across the entire zoom range. Four independently controlled framing shutters with full curtain capability allow precise beam shaping, making the fixture equally suited to theatre productions, television studios and corporate events.
The Astra Profile300LTIP offers an extensive creative toolkit, including CMY colour mixing, linear CTO correction, 12 colour filters, seven rotating gobos, an animation wheel, dual overlapping prisms and a frost filter. These professional features provide lighting designers with exceptional flexibility for creating everything from subtle stage lighting to dramatic aerial effects and textured projections.
Built with a die-cast magnesium alloy housing and low-noise cooling system, the Astra Profile300LTIP is designed for demanding production environments. It supports DMX512, RDM and optional LumenRadio CRMX wireless DMX, making it easy to integrate into professional lighting systems for concerts, theatres, broadcast, rental and outdoor productions.
Key Features
• 300W high-output white LED engine
• Up to 12,000 lumen output
• IP65-rated for temporary outdoor use
• Motorised 3.9°–44.1° linear zoom range
• Linear CMY colour mixing with CTO correction
• Four rotating framing shutters with full curtain capability
• Seven rotating, interchangeable gobos
• Animation wheel for dynamic projection effects
• Dual overlapping prisms for aerial beam effects
• Frost filter for smooth beam softening
• Optional LumenRadio CRMX wireless DMX compatibility
• Supports DMX512 and RDM control protocols
• Weatherproof die-cast magnesium alloy housing
Specifications
• Brand: Prolights
• Manufacturer Model: ASTRAPROF300LTIP
• Product Type: LED Moving Profile Light
• Light Source: 300W high-power white LED
• Colour Temperature: 6500K
• Light Output: Up to 12,065 lumens
• CRI: >70 (up to CRI >90 using High CRI filter)
• Beam Angle: 3.9°–44.1° motorised linear zoom
• Lens Diameter: 135mm
• Focus: Motorised 16-bit with tracking
• Colour System: CMY colour mixing with linear CTO correction
• Colour Wheel: 12 dichroic colour filters
• Framing System: Four rotating framing shutters
• Gobo System: 7 rotating gobos
• Animation Wheel: Yes
• Prism System: Two overlapping linear prisms
• Frost: Linear frost filter
• Pan: 540°
• Tilt: 270°
• Control Protocols: DMX512, RDM
• Wireless DMX: Optional LumenRadio TiMo FX (CRMX & W-DMX compatible)
• DMX Channels: 42
• Power Supply: 100–240V AC, 50/60Hz
• Power Consumption: 491W
• IP Rating: IP65
• Dimensions: 393 × 620 × 282mm
• Weight: 26kg
• Housing: Weatherproof die-cast magnesium alloy
• Operating Temperature: -20°C to +45°C
What's in the Box
• Prolights Astra Profile300LTIP fixture
• 2 × OSIPPLUS Omega quick-lock brackets
• 1.5m power cable with Seetronic powerCON TRUE1 IP65 connector (bare end)
• User documentation
