Nanlux Matrix 2500C

Overview

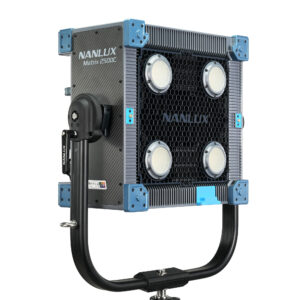

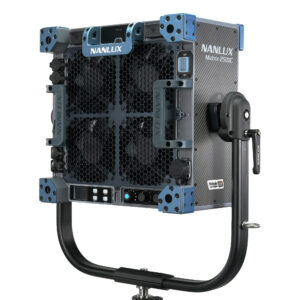

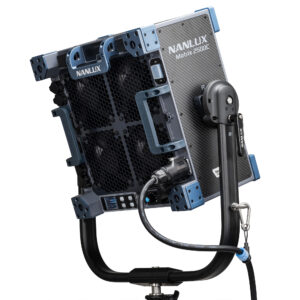

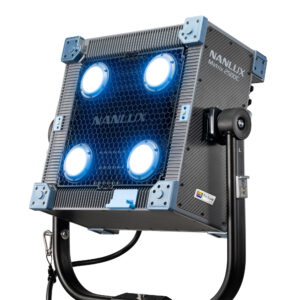

The Nanlux Matrix 2500C is a high-output full-colour LED spotlight engineered for large-scale film, television, commercial, and virtual production environments. Featuring an integrated four-head design with Nanlux’s advanced Nebula C8 colour engine, the Matrix 2500C delivers exceptional output, precise colour control, and flexible multi-fixture array functionality for professional cinematic lighting applications.

Designed for demanding production workflows, the Matrix 2500C offers an ultra-wide CCT range from 1000K to 20,000K with advanced green/magenta adjustment, enabling accurate colour matching and creative lighting control across a wide range of shooting scenarios. The fixture supports multiple lighting modes including CCT, HSI, HSIW, RGBW, XY Coordinates, Gel, and Effects, making it suitable for feature films, broadcast, studio installations, and virtual production stages.

Its robust magnesium alloy housing features an IP66 weather-resistant rating for reliable performance in challenging production environments. The included FL-MT25 Motorised Fresnel Lens provides a motorised 16° to 48° zoom range for precise beam shaping and high-output illumination.

Key Features
• Professional 2500W full-colour LED spotlight for film and TV production
• Integrated four-head lighting design for high-density output
• Nebula C8 colour engine with advanced colour mixing technology
• Wide CCT range from 1000K to 20,000K
• ±200 green/magenta adjustment for precise colour matching
• Lighting modes: CCT, HSI, HSIW, RGBW, XY Coordinates, Gel, and Effects
• High illuminance up to 67,900 lux at 3 m (5600K, 16°)
• Included FL-MT25 Motorised Fresnel Lens with 16°–48° zoom range
• Excellent colour accuracy with CRI/TLCI average of 98/98
• IP66-rated magnesium alloy housing for outdoor production use
• 0.1% dimming control for smooth cinematic fades
• Supports DMX/RDM, LumenRadio CRMX, Art-Net/sACN, NANLINK App 2.0, Bluetooth, Wi-Fi, and NFC control
• Designed for modular multi-fixture array configurations
• Suitable for film sets, broadcast studios, commercials, and virtual production workflows

Specifications
• Model: Matrix 2500C
• Product Type: Full-Colour LED Spotlight
• Power Output: 2500W
• Light Engine: Nebula C8
• CCT Range: 1000K–20,000K
• Green/Magenta Adjustment: ±200
• Dimming: 0.1–100%
• CRI: Average 98
• TLCI: Average 98
• Beam Angle: 16°–48° (with included FL-MT25 Fresnel Lens)
• Illuminance: 67,900 lux at 3 m (5600K, 16°)
• Housing Material: Magnesium alloy
• IP Rating: IP66
• Control Methods: On-board, NANLINK App 2.0, DMX/RDM, CRMX, Art-Net/sACN, Bluetooth, Wi-Fi, NFC
• Fan Modes: Smart, Full Speed, Low Speed, Off
• Dimensions: 40 × 40 × 23.5 cm
• Input Voltage: AC100–240V, 50/60Hz
• Maximum Power Consumption: 2500W

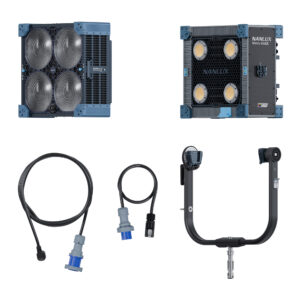

What’s in the Box
• Nanlux Matrix 2500C LED Spotlight
• FL-MT25 Motorised Fresnel Lens
• Power cable
• Standard mounting yoke
• User documentation
