Overview
The Nanlux Evoke 900C RGB LED Spotlight Kit with Fresnel Lens and Flight Case is a professional full-colour lighting system designed for film, television, broadcast, and high-end studio production. Built around Nanlux’s Nebula C8 8-colour LED engine, it delivers exceptional colour accuracy, wide spectral control, and a flexible colour temperature range from 1800K to 20,000K.
This configuration includes the Evoke 900C fixture, FL-35YK Fresnel lens, yoke, reflector, control accessories, and a heavy-duty flight case designed to securely house the complete kit for transport and rental workflows. The Fresnel lens significantly enhances beam shaping capability, allowing smooth transitions between spot and flood for precise lighting control on set.
The integrated design offers high output in a compact form factor, eliminating the need for an external ballast while maintaining professional-grade performance. The Evoke 900C supports advanced RGBLAC colour mixing with green/magenta adjustment, ensuring accurate matching across complex lighting environments.
With full control compatibility including DMX/RDM, LumenRadio CRMX, Art-Net/sACN, Bluetooth, and Nanlink app integration, the system fits seamlessly into modern production workflows. The NL mount ecosystem supports a wide range of modifiers including Fresnels, reflectors, softboxes, and projection attachments, making it a versatile tool for both controlled studio lighting and dynamic location work.
Key Features
• Full-colour RGB LED spotlight with Nebula C8 engine
• Wide colour temperature range: 1800K – 20,000K
• Includes FL-35YK Fresnel lens for precision beam control
• Includes heavy-duty flight case for full kit transport
• High-output 940W cinema-grade LED fixture
• RGBLAC colour mixing with advanced spectral accuracy
• +/- green/magenta adjustment for precise colour matching
• 0–100% smooth dimming control
• DMX, CRMX, Art-Net/sACN, Bluetooth, and app control options
• NL Mount compatibility for full modifier ecosystem
• IP55-rated weather-resistant housing
Specifications
• Model: EVOKE 900C FL-YK KIT
• Product type: RGB LED spotlight kit with Fresnel
• Colour temperature range: 1800K – 20,000K
• Power consumption: approx. 940W
• Colour system: Nebula C8 8-chip RGBLAC engine
• Output: approx. 12,940 lux @ 3m (with reflector)
• Dimming: 0–100% with 0.1% precision
• Control: DMX/RDM, CRMX, Art-Net/sACN, Bluetooth, app
• Mount system: Nanlux NL Mount
• Included case: Heavy-duty flight case (kit-specific configuration)
• Application: Film production, studio lighting, broadcast, rental use

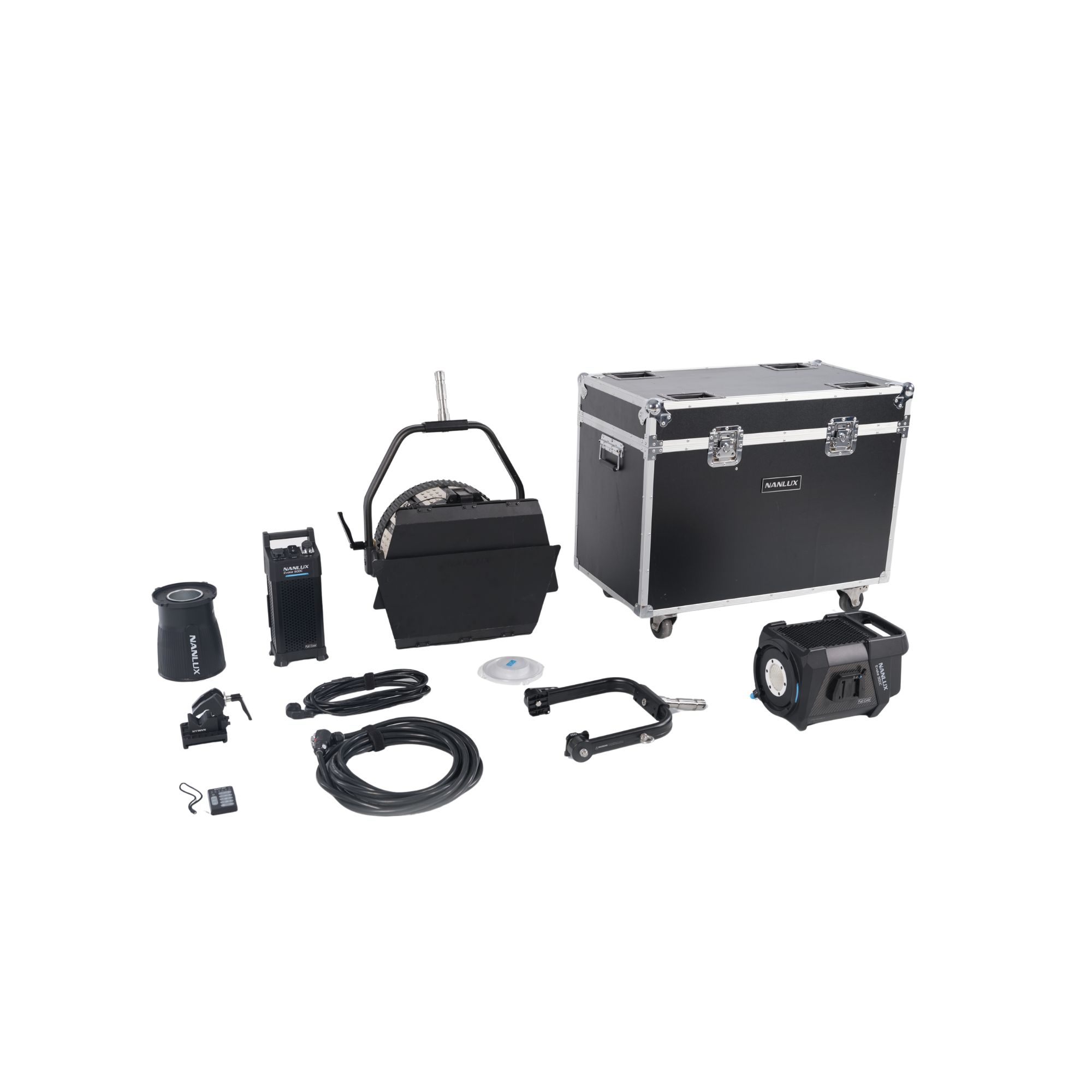

What’s in the Box
• 1 × Nanlux Evoke 900C RGB LED Spotlight
• 1 × FL-35YK Fresnel Lens
• 1 × Yoke
• 1 × Reflector
• 1 × Power supply unit
• 1 × Control accessories (wired/remote depending on kit)
• 1 × Connection cables
• 1 × Heavy-duty flight case
• 1 × User manual
