Overview

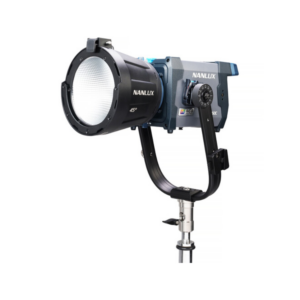

The Nanlux Evoke 150C RGB LED Spotlight is a compact, high-performance full-colour lighting fixture designed for professional film, television, broadcast, and studio production. Built around Nanlux’s advanced Nebula C8 8-colour LED engine, it delivers exceptional colour accuracy, deep saturation, and a wide tunable spectrum ranging from 1000K to 20,000K.
This all-in-one fixture eliminates the need for an external ballast, making it significantly more portable and efficient on set. Despite its compact form factor, the Evoke 150C produces powerful output suitable for key lighting, background illumination, and creative RGB effects in both controlled studio environments and challenging location shoots.
With full RGBWW-style colour control, green/magenta adjustment, and precise dimming capabilities, the fixture offers complete creative flexibility for cinematographers and lighting designers. It supports multiple professional control methods including onboard operation, DMX/RDM, LumenRadio CRMX, Bluetooth, and Nanlink app control.
The Evoke 150C is also built with an IP66-rated housing, making it suitable for demanding outdoor conditions. Its NL mount ecosystem allows compatibility with a wide range of modifiers, including Fresnels, reflectors, and projection accessories, making it a highly versatile tool in modern lighting workflows.
Key Features
• Full-colour RGB LED spotlight with Nebula C8 engine
• Wide colour temperature range: 1000K – 20,000K
• High colour accuracy with advanced multi-chip LED mixing
• Compact design with no external ballast required
• Output: approx. 22,230 lux @ 1m with reflector
• +/- green/magenta tint adjustment for precise colour matching
• 0–100% smooth dimming control
• Multiple control options: DMX, CRMX, Bluetooth, app, onboard
• IP66-rated weather-resistant housing
• NL mount compatibility for professional light modifiers
Specifications
• Model: EV150C
• Product type: RGB LED spotlight
• Colour temperature range: 1000K – 20,000K
• Output: 22,230 lux @ 1m with reflector
• Colour system: Nebula C8 8-chip LED engine
• Control: DMX/RDM, CRMX, Bluetooth, Nanlink app, onboard
• Protection rating: IP66 weather-resistant housing
• Power: AC / DC compatible
• Mount system: Nanlux NL mount
• Application: Film production, studio lighting, broadcast, content creation

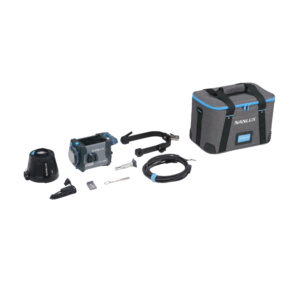

What’s in the Box
• 1 × Nanlux Evoke 150C RGB LED Spotlight
• 1 × Yoke
• 1 × Reflector
• 1 × Power cable
• 1 × D-Tap cable
• 1 × Carry bag
• 1 × User manual
