Overview

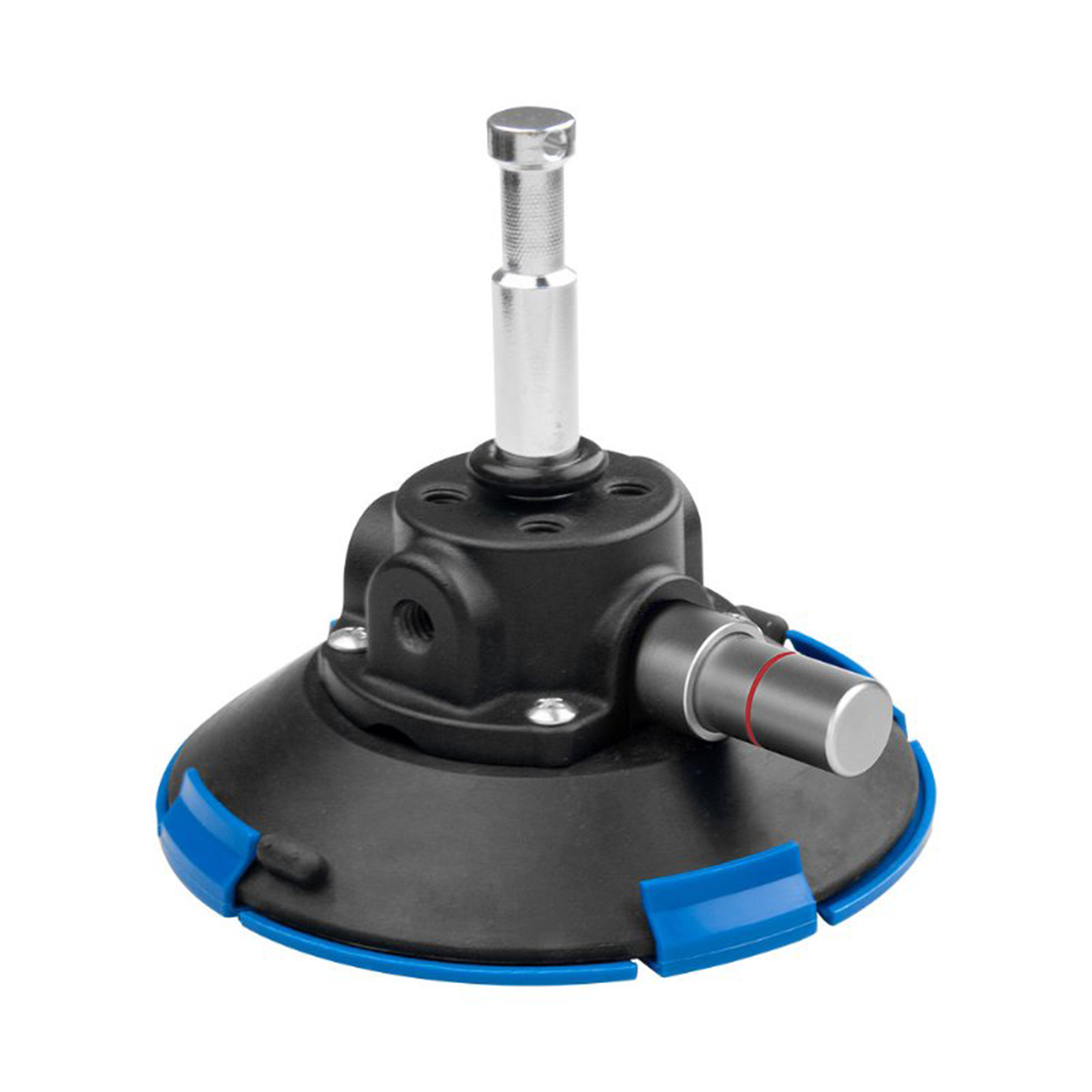

The Kupo KSC-04MP Suction Cup with Fixed Baby Pin provides a practical temporary mounting solution when a conventional stand cannot be used. Designed for professional film, television, photography and sound production, it can be mounted to suitable smooth, non-porous surfaces such as vehicle panels, windows, mirrors and boats.
The 6-inch pumping suction cup uses a durable rubber cup with a metal plunger, providing a robust alternative to plastic-pump designs. A red-line indicator helps warn of vacuum loss, which is particularly useful when working in demanding shooting environments.
The KSC-04MP features a fixed 5/8" (16 mm) Baby stud, allowing compatible lighting fixtures, cameras and grip accessories to be mounted directly. The aluminium mounting block also features 3/8"-16 threaded mounting points, providing additional rigging options when required.
With a maximum stated load of 20 kg, the KSC-04MP is suitable for a range of lightweight production equipment. It also includes a suction cup pad protector, helping protect the cup and mounting surface during storage and transport.
The suction cup's rubber construction is rated for use between -12°C and 49°C, making it suitable for a broad range of production environments.
Key Features
• Professional pumping suction cup for temporary equipment mounting
• 6-inch (15.24 cm) suction cup diameter
• Fixed 16 mm (5/8") Baby stud
• Ideal for mounting lightweight lighting, cameras and accessories
• Suitable for smooth, non-porous surfaces

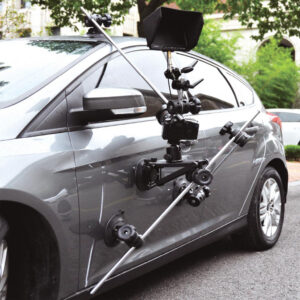

• Useful for vehicle, window, mirror and boat mounting applications
• Metal plunger for improved durability
• Red-line vacuum indicator helps warn of vacuum loss

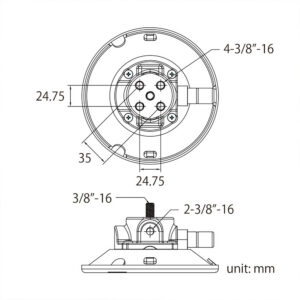

• Aluminium mounting block with multiple 3/8"-16 threaded points
• Maximum load of up to 20 kg
• Rubber construction suitable for temperatures from -12°C to 49°C
• Includes suction cup pad protector
• Compact and lightweight design
Specifications
• Brand: Kupo
• Model: KSC-04MP
• Product Type: Pumping Suction Cup with Fixed Baby Pin
• Material: Rubber, aluminium and plastic
• Suction Cup Diameter: 6" / 15.24 cm
• Plunger: Metal
• Mounting: Fixed 5/8" (16 mm) Baby stud
• Threaded Mounting Points: 3/8"-16
• Maximum Load: 20 kg
• Weight: 470 g
• Operating Temperature: -12°C to 49°C
• Vacuum Indicator: Red-line indicator
• Pad Protector: Included
What's in the Box
• Kupo Suction Cup with Fixed Baby Pin KSC-04MP
• Suction Cup Pad Protector
