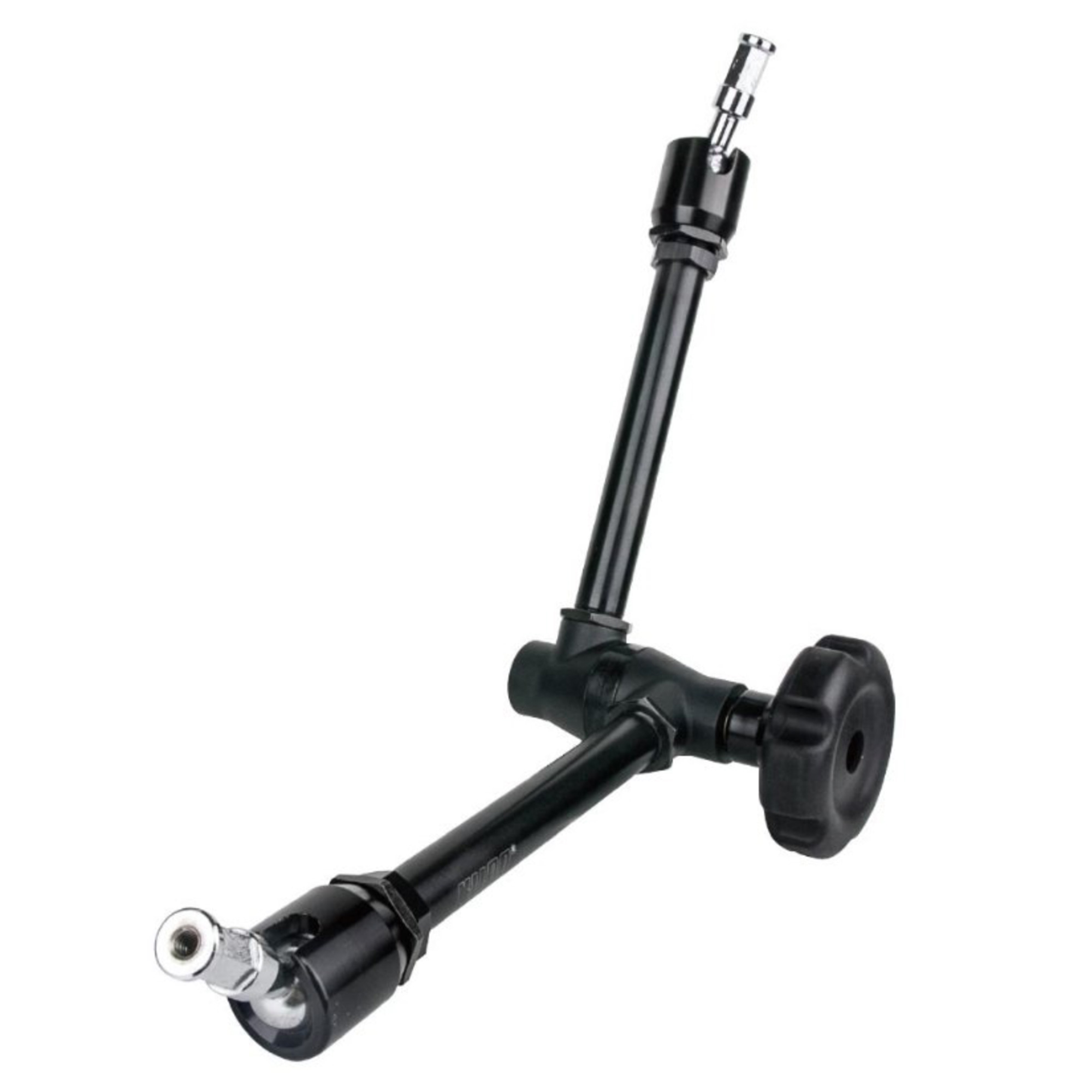

Kupo Max Arm with Wheel Handle (KCP-101W)

Overview

The Kupo KCP-101W Max Arm with Wheel Handle is a professional articulating mounting arm designed for precise, secure positioning of cameras, lights, and accessories in film, television, photography, and studio production environments.

It features a wheel-style locking handle that tightens all three joints simultaneously, allowing for fast, controlled adjustments with consistent tension. The dual ball-joint system, combined with a central articulating elbow, provides full 360° movement for flexible positioning in both studio and location setups.

Each end of the arm is fitted with a 16 mm (5/8") baby stud featuring anti-rotation milled flats to keep mounted equipment securely aligned. The studs also include 1/4"-20 and 3/8"-16 threaded connections for broad compatibility with standard production gear.

Constructed from steel and aluminium alloy, the KCP-101W offers a strong yet lightweight solution for demanding on-set use. Its compact folded size makes it easy to transport, while its extended reach supports a wide range of rigging applications. A built-in friction disc system helps maintain stable positioning once locked.

Key Features
• Professional articulating Max Arm for lighting and camera support
• Wheel-style handle locks all joints simultaneously for fast adjustment
• Dual ball-joint system with full 360° articulation
• Central elbow joint for flexible multi-angle positioning
• 16 mm (5/8") baby studs with anti-rotation milled flats
• 1/4"-20 and 3/8"-16 threaded mounting compatibility
• Integrated friction disc system for secure, stable locking
• Compact folding design for easy transport and storage
• Suitable for film, TV, photography, and studio production workflows

Specifications
• Model: KCP-101W
• Product Type: Max Arm / Articulating Arm
• Material: Steel and aluminium alloy
• Colour: Black
• Length (extended): 53 cm
• Weight: Approx. 1 kg
• Maximum Load Capacity: 4 kg
• Mounting Interface: 16 mm (5/8") baby stud with 1/4"-20 and 3/8"-16 threads
• Adjustment: 360° articulation at joints and central elbow

What’s in the Box
• Kupo Max Arm with Wheel Handle (KCP-101W)
• Dual ball-joint articulated arm assembly
• Wheel-style locking handle
• 16 mm (5/8") mounting studs (pre-installed)
• Integrated friction disc and locking system
