Overview

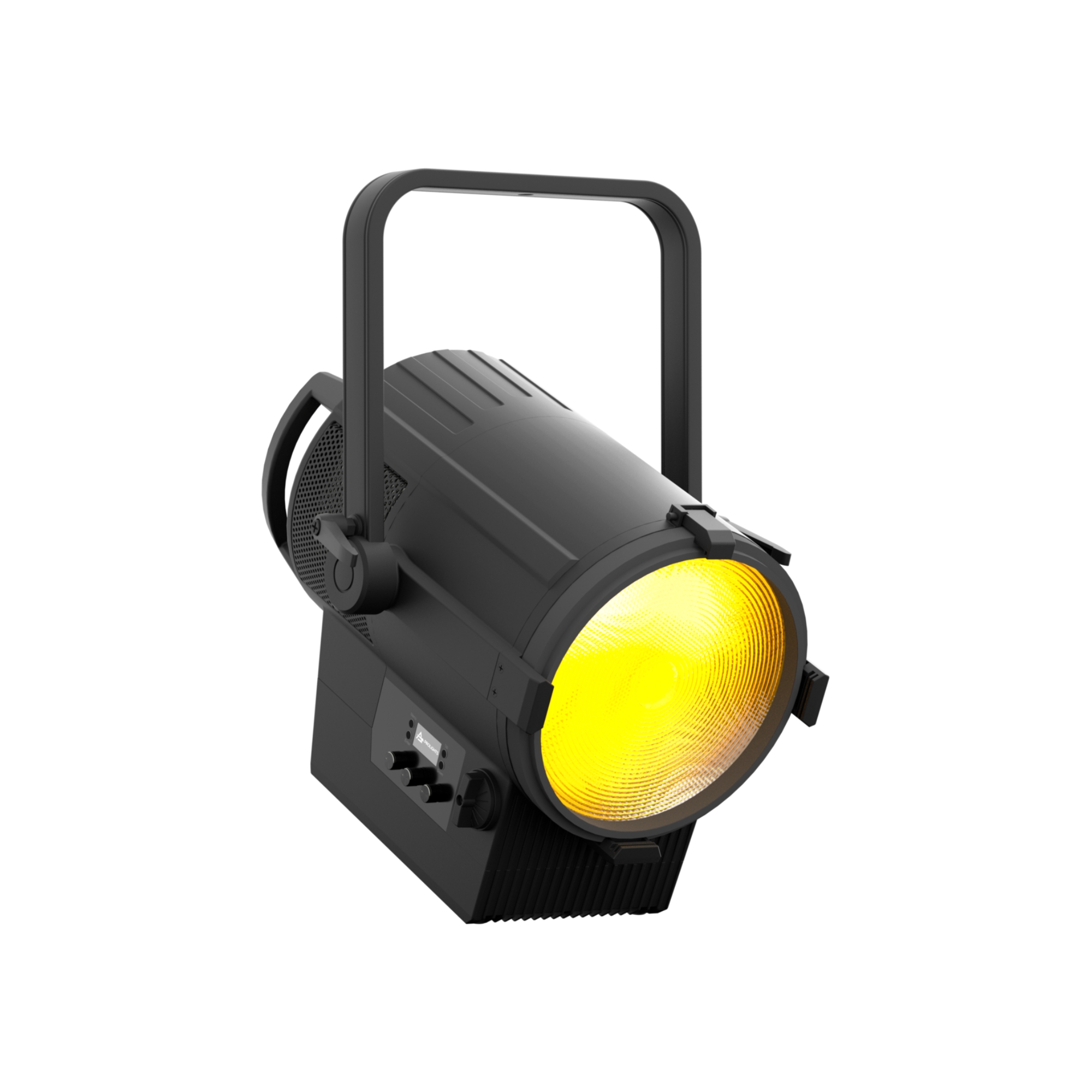

The Prolights EclFresnel 2KTW is a high-performance LED Fresnel fixture designed as a modern replacement for traditional 2kW tungsten Fresnel lights. Built for film, broadcast, theatre, and studio environments, it delivers powerful, high-quality output with exceptional colour accuracy and full tunable white control.
At its core, the fixture features a 500W six-colour LED engine (red, orange, green, royal blue, blue, and lime), enabling precise reproduction of the white spectrum from 2800K to 10,000K. This advanced colour system provides excellent CRI and TLCI performance, making it ideal for camera-facing applications where natural skin tones and colour fidelity are critical.
The optical system produces a smooth, even field with a classic Fresnel falloff, while the manual zoom (17°–76°) allows for flexible beam shaping from focused key light to wide soft coverage. Integrated +/- green and magenta correction ensures easy matching with other light sources on set.
Designed for professional environments, the EclFresnel 2KTW operates silently, making it perfectly suited for studio and broadcast use. It also includes both manual and DMX control options, giving lighting technicians full control over output, colour, and effects.
Key Features
• 500W LED Fresnel fixture replacing traditional 2kW tungsten units
• Tunable white range from 2800K to 10,000K
• Advanced 6-colour LED engine for accurate colour reproduction
• High CRI and TLCI for film and broadcast applications
• +/- green and magenta correction for colour matching
• Manual zoom range from 17° to 76°
• Smooth, even beam with classic Fresnel falloff
• Silent operation for studio and on-set use
• DMX512 and RDM control plus onboard manual control
• Built-in colour macros and effects
Specifications
• Light source: 500W 6-colour LED (red, orange, green, royal blue, blue, lime)
• Colour temperature: 2800K – 10,000K
• Luminous output: up to approx. 13,400 lm (wide)
• Beam angle: 17° – 76° manual zoom
• Lens diameter: 250 mm Fresnel lens
• CRI: up to approx. 90+
• TLCI: approx. 87
• Source lifetime: > 50,000 hours
• Control protocols: DMX512, RDM, manual rotary control
• DMX channels: multiple modes (1 to 21 channels)
• IP rating: IP20 (indoor use)
• Weight: 17.2 kg
What’s in the Box
• Prolights EclFresnel 2KTW fixture
• 8-leaf barndoor
• Gel frame
• Spigot (junior pin)
• User manual / documentation
