Overview

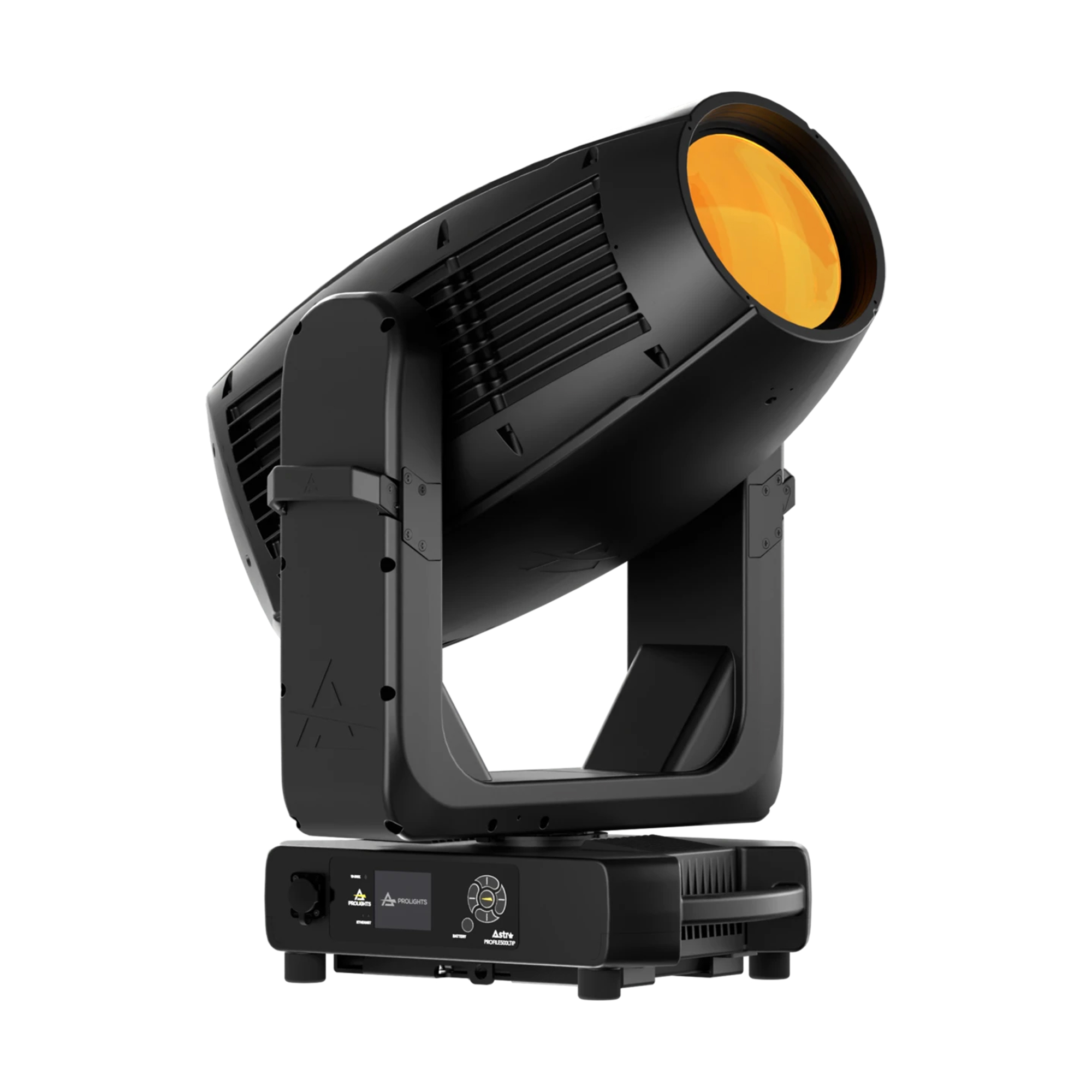

The Prolights Astra Profile500LTIP is a premium long-throw LED moving profile engineered for demanding professional lighting applications. Featuring a powerful 500W white LED source, it produces an impressive 25,000-lumen output, providing exceptional brightness for arenas, concert stages, theatres, broadcast studios and outdoor productions. Its robust IP65-rated construction ensures reliable operation in challenging weather conditions without compromising performance.
A large 156mm front lens and 4.2°–50.1° motorised linear zoom deliver outstanding optical performance, producing crisp aerial beams, sharp gobo projections and even stage coverage throughout the zoom range. Four precision framing shutters provide accurate beam shaping for theatrical, broadcast and corporate productions where precise light control is essential.
Designed to maximise creative flexibility, the Astra Profile500LTIP features CMY colour mixing, linear CTO correction, a colour wheel, rotating and fixed gobos, an animation wheel, dual prisms, dual frost filters and a motorised iris. Together, these tools enable everything from subtle stage washes to dramatic aerial effects and intricate projection designs.
Professional connectivity includes DMX512, RDM, Art-Net, sACN and integrated LumenRadio CRMX wireless DMX, allowing seamless integration into modern lighting networks. Built with a die-cast magnesium alloy housing and quiet cooling system, the Astra Profile500LTIP is equally at home in touring, permanent installations and broadcast environments.
Key Features
• 500W high-output white LED engine
• Up to 25,000 lumen output
• IP65-rated for temporary outdoor use
• Motorised 4.2°–50.1° linear zoom range
• Linear CMY colour mixing with CTO correction
• Four rotating framing shutters with full curtain capability
• Seven rotating gobos and eight fixed gobos
• Animation wheel for dynamic projection effects
• Dual rotating prisms for layered aerial effects
• Dual frost filters and motorised iris
• Integrated LumenRadio CRMX wireless DMX
• Supports DMX512, RDM, Art-Net and sACN protocols
• Die-cast magnesium alloy weatherproof housing
Specifications
• Brand: Prolights
• Manufacturer Model: ASTRAPROF500LTIP
• Product Type: LED Moving Profile Light
• Light Source: 500W white LED
• Colour Temperature: 6500K
• Light Output: Up to 25,000 lumens
• CRI: >70 (up to CRI >90 with High CRI filter)
• Beam Angle: 4.2°–50.1° motorised linear zoom
• Lens Diameter: 156mm
• Focus: Motorised 16-bit with tracking
• Colour System: Linear CMY colour mixing with CTO correction
• Colour Wheel: High CRI filter + 5 colour filters
• Framing System: Four rotating framing shutters
• Gobo System: 7 rotating gobos, 8 fixed gobos
• Animation Wheel: Yes
• Prism System: 4-facet circular prism and 6-facet linear prism
• Frost: Dual frost filters
• Iris: Motorised
• Pan: 540°
• Tilt: 270°
• Control Protocols: DMX512, RDM, Art-Net, sACN, CRMX
• Wireless DMX: Integrated LumenRadio CRMX
• DMX Channels: 43
• Power Supply: 100–240V AC, 50/60Hz
• Power Consumption: 788W
• IP Rating: IP65
• Dimensions: 449 × 705 × 297mm
• Weight: 34kg
• Housing: Die-cast magnesium alloy
• Operating Temperature: -20°C to +45°C
What's in the Box
• Prolights Astra Profile500LTIP fixture
• 2 × Omega quick-lock brackets (OSIPPLUS)
• 1.5m power cable with Seetronic powerCON TRUE1 IP65 connector (bare end)
• User documentation
