Overview

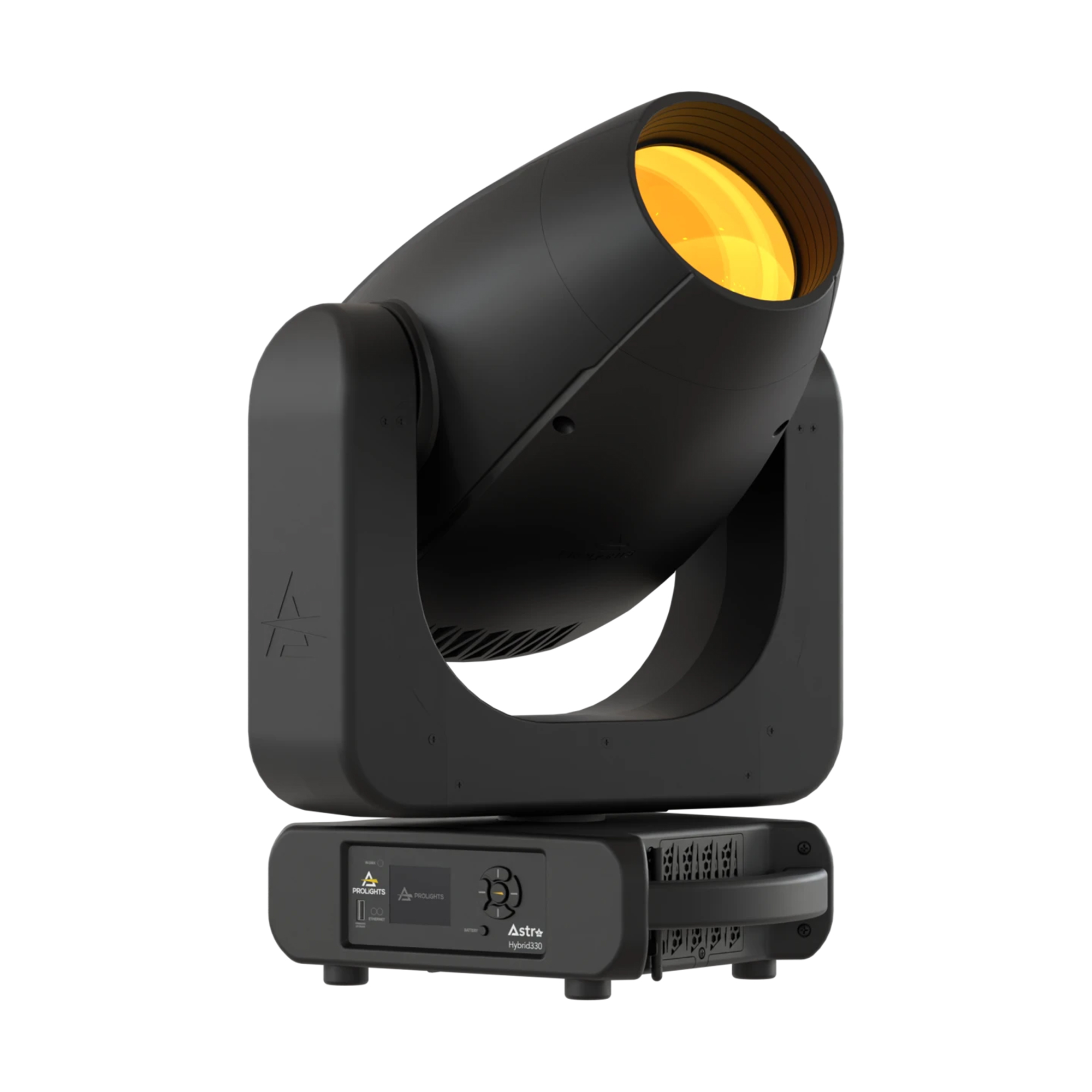

The Prolights Astra Hybrid330 is a versatile LED hybrid moving head engineered to deliver exceptional performance across concerts, theatre productions, television studios, corporate events and rental applications. Featuring a powerful 330W white LED light source, it produces an intense, uniform beam while maintaining the smooth projection and consistency expected from modern LED technology.
Its advanced optical system incorporates a 3°–50° motorised linear zoom with a large 140mm front lens, allowing the Astra Hybrid330 to transition effortlessly from a tight aerial beam to a wide, even spotlight. This versatility makes it an ideal all-in-one fixture for productions requiring multiple lighting effects without changing luminaires.
The fixture offers an extensive creative toolkit, including linear CMY colour mixing, three independent colour wheels, two gobo wheels, an animation wheel, dual overlapping prisms and a linear frost filter. Whether producing crisp aerial effects, textured projections or smooth wash lighting, the Astra Hybrid330 provides lighting designers with exceptional creative freedom.
Designed for professional workflows, the Astra Hybrid330 features quiet cooling, integrated LumenRadio CRMX wireless DMX, EtherFlow network pass-through and compatibility with DMX512, RDM, Art-Net and sACN protocols. Its compact, lightweight design makes it equally suited to permanent installations and touring productions.
Key Features
• 330W high-output white LED engine
• Beam, spot and wash functionality in a single fixture
• Motorised 3°–50° linear zoom range
• Linear CMY colour mixing with three colour wheels
• Eight rotating gobos and eleven fixed gobos
• Animation wheel for dynamic projection effects
• Dual overlapping circular and linear prisms
• Linear frost filter for smooth wash effects
• Integrated LumenRadio CRMX wireless DMX compatibility
• Supports DMX512, RDM, Art-Net and sACN protocols
• Quiet cooling system for theatre and broadcast applications
• Compact and lightweight design for touring and rental environments
Specifications
• Brand: Prolights
• Manufacturer Model: ASTRAHYB330
• Product Type: LED Hybrid Moving Head
• Light Source: 330W high-power white LED
• Colour Temperature: 7000K
• Light Output: Up to 15,272 lumens
• Beam Angle: 3°–50° motorised linear zoom
• Focus: Motorised 16-bit
• Colour System: Linear CMY colour mixing with three colour wheels
• Gobo System: 8 rotating gobos, 11 fixed gobos
• Animation Wheel: Yes
• Prism System: Circular 8-facet prism and linear 6-facet prism
• Frost: Linear frost filter
• Pan: 540°
• Tilt: 270°
• Control Protocols: DMX512, RDM, Art-Net, sACN
• Wireless DMX: Integrated LumenRadio CRMX
• DMX Channels: 29
• Power Supply: 100–240V AC, 50/60Hz
• Power Consumption: 517W
• IP Rating: IP20
• Dimensions: 411 × 638 × 244 mm
• Weight: 21.6 kg
• Housing: Aluminium body with high-resistance polycarbonate covers
• Operating Temperature: -10°C to +45°C
What's in the Box
• Prolights Astra Hybrid330 fixture
• 2 × Omega quick-lock brackets
• Power cable (Neutrik powerCON TRUE1, bare end)
• User manual
