Overview

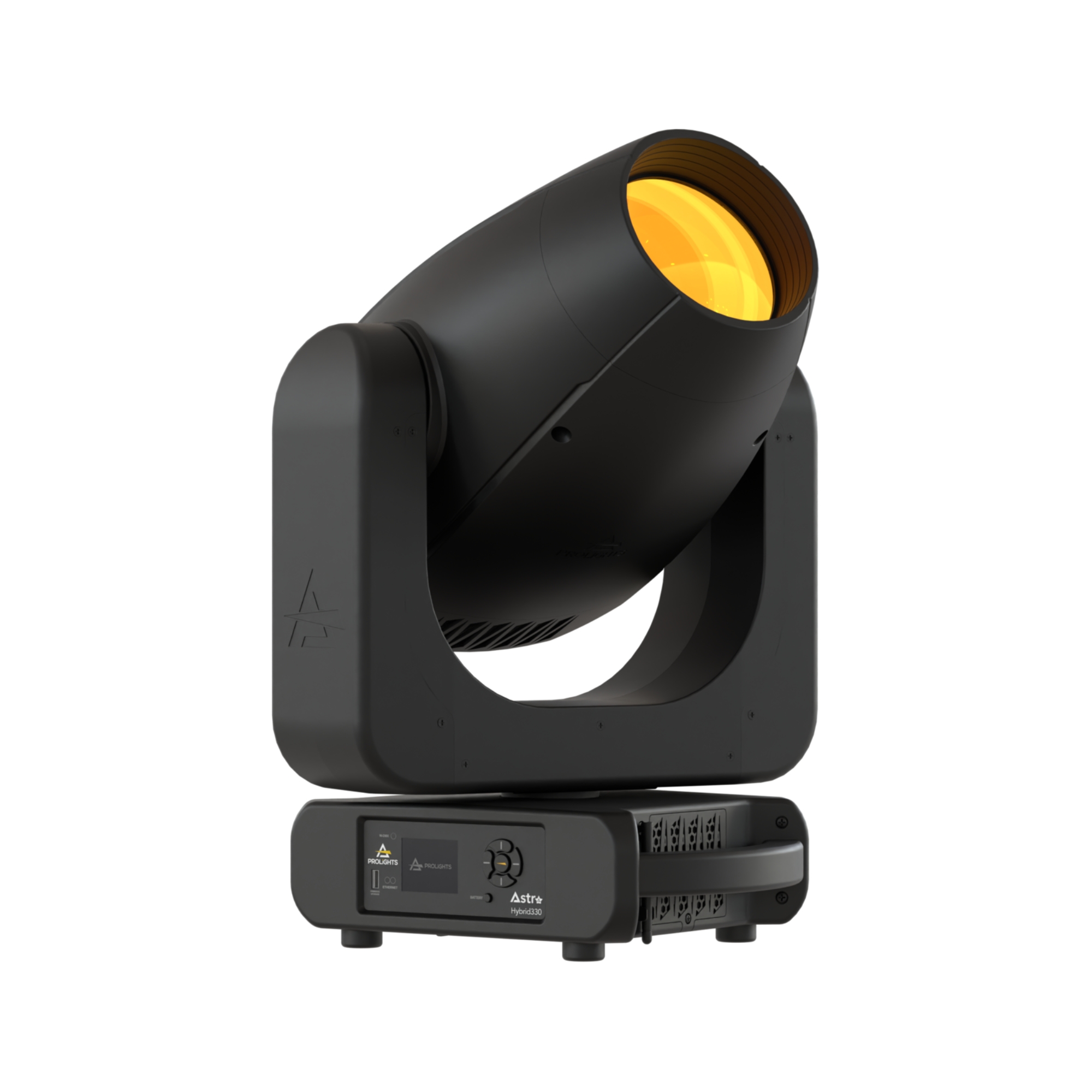

The Prolights Astra Hybrid 330 is a powerful hybrid moving head designed for professional stage, broadcast, and live event lighting applications. Combining a 330W high-power white LED source with advanced optical and effect systems, it delivers exceptional beam brightness, projection clarity, and creative flexibility in a compact form factor.
With a motorised zoom range from 3° to 50°, the Astra Hybrid 330 transitions seamlessly between tight aerial beam effects and wide spot projection, making it a versatile solution for concerts, theatre productions, corporate events, and television studios.
The fixture features a full CMY colour mixing system, multiple colour wheels, rotating and static gobos, dual prisms, and a motorised animation wheel, giving lighting designers a wide palette of effects for dynamic and atmospheric visuals. Its precision optical system and 140mm front lens ensure high output and consistent beam quality across the full zoom range.
Built for professional use, the Astra Hybrid 330 integrates seamlessly into modern lighting networks with support for DMX, RDM, Art-Net, sACN, and CRMX wireless control.
Key Features
• 330W high-power white LED hybrid moving head
• Motorised zoom range from 3° to 50°
• Full CMY linear colour mixing system
• Multiple colour wheels for expanded colour control
• 8 rotating gobos + 11 static gobos
• Motorised animation wheel for dynamic effects
• Dual prism system (linear and circular prisms)
• Linear frost for wash and soft beam effects
• 16-bit pan and tilt movement for precision control
• Integrated CRMX wireless DMX compatibility
• Supports DMX512, RDM, Art-Net, and sACN protocols
• Compact, lightweight hybrid design for touring and installation use
Specifications
• Light source: 330W high-power white LED
• Colour temperature: approx. 7000K
• Beam angle: 3° – 50° motorised zoom
• Luminous output: up to approx. 15,272 lm (wide mode)
• Lux output: up to approx. 114,701 lx @ 5m (narrow mode)
• Pan movement: 540° (16-bit resolution)
• Tilt movement: 270° (16-bit resolution)
• Control protocols: DMX512, RDM, Art-Net, sACN, CRMX
• Gobo system: 8 rotating + 11 fixed gobos
• Colour system: CMY + multiple colour wheels
• Effects: dual prism system, animation wheel, frost filter
• Power consumption: approx. 517W
• Weight: 21.6 kg
• IP rating: IP20 (indoor use)
• Dimensions: approx. 411 × 638 × 244 mm
What’s in the Box
• Prolights Astra Hybrid 330 fixture
• 2 × Omega quick-lock mounting brackets
• Power cable (Seetronic powerCON TRUE1, bare end)
• User manual / quick start guide
