Overview

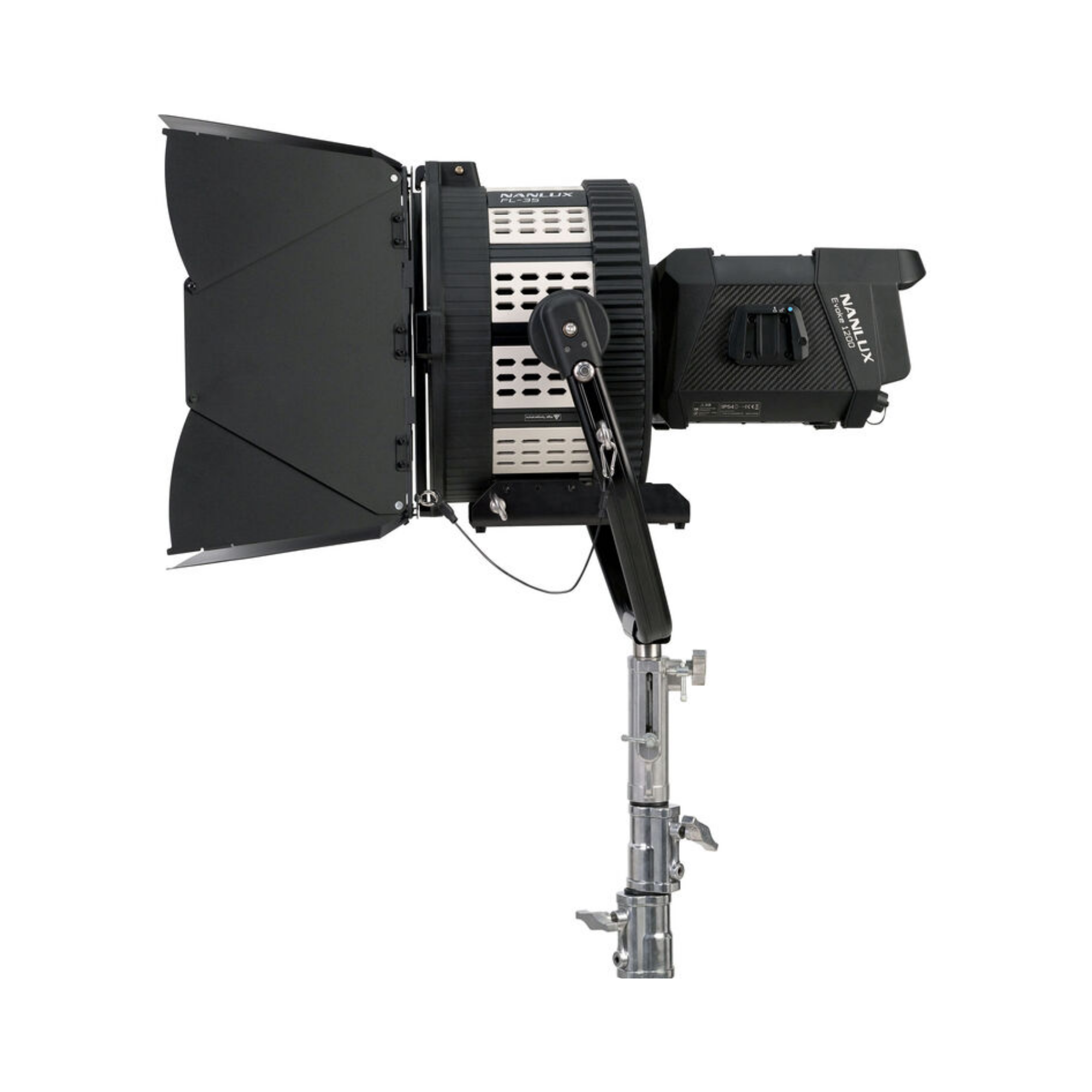

The Nanlux FL-35YK Fresnel Lens is a professional-grade beam-shaping accessory designed for the Nanlux Evoke series, including the Evoke 900C and 1200/1200B systems. It transforms a COB LED fixture into a fully controllable Fresnel spotlight, giving cinematographers precise control over beam spread, intensity, and focus.
With a variable beam angle ranging from 11° to 45°, the FL-35YK allows smooth transitions between tight spot lighting and medium flood output. This makes it ideal for cinematic key lighting, controlled background separation, and flexible shaping on studio or location sets.
The lens significantly increases illuminance output when paired with Evoke fixtures, producing extremely high-intensity beams suitable for large-scale production environments. Its optical design ensures a clean, even beam with minimal aberration while maintaining strong edge control.
The system includes a centre-mounted offset yoke design, improving balance and allowing smoother tilt movement without interference from accessories such as barndoors. This enhances usability on set, especially in fast-paced production workflows.
Built with robust glass optics and a durable housing, the FL-35YK is designed for professional film, television, and rental applications where reliability and precision are critical. It integrates directly with the NL Mount system for secure and stable attachment.
Key Features
• Professional Fresnel lens for Nanlux Evoke series
• Adjustable beam angle from 11° to 45°
• Converts COB LED into a true controllable Fresnel spotlight
• Significantly increases light output and beam intensity
• Smooth focus control for spot-to-flood adjustment
• Offset yoke design for improved balance and tilt movement
• Compatible with barndoors and beam control accessories
• High-quality glass optics for clean beam projection
• Built for film, broadcast, studio, and rental environments
• NL Mount system for secure fixture integration
Specifications
• Model: FL-35YK
• Product type: Fresnel lens attachment
• Beam angle: 11° – 45° adjustable
• Compatibility: Nanlux Evoke 900C / 1200 / 1200B series
• Mount system: NL Mount
• Construction: Glass Fresnel optics with aluminium housing
• Application: cinema lighting, studio lighting, broadcast production
• Design feature: offset yoke for improved tilt balance
What’s in the Box
• 1 × Nanlux FL-35YK Fresnel Lens
• 1 × Offset yoke assembly
• 1 × Barndoors (kit dependent)
• 1 × Carrying/flight case (kit dependent)
• 1 × User manual
