Overview

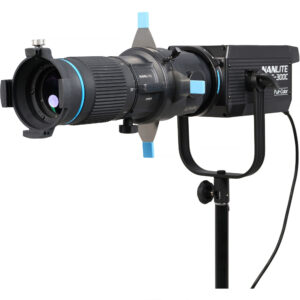

The Nanlite PJ-BM 25–45° Projection Attachment is a professional Bowens-mount optical spotlight system featuring a variable zoom lens design, allowing users to adjust the beam angle seamlessly between 25° and 45°.
Unlike fixed-angle projection attachments, this system provides on-the-fly beam adjustment without changing lenses, giving lighting designers greater flexibility for both tight spotlight work and wider cinematic coverage within a single unit.
Engineered for use with Nanlite Bowens-mount COB LED fixtures (including Forza, FC, and FS series), the PJ-BM 25–45° delivers a high-efficiency optical projection system with improved output control and beam shaping precision.
The integrated zoom lens barrel is fully 360° rotatable, allowing users to adjust beam orientation or gobo placement without disassembling the unit or interrupting workflow.
The system includes internal shutters for precise edge control, enabling users to cut and shape light spill directly inside the projection body. It also supports M-size gobos for pattern projection, along with gel framing for colour effects.
This unit is designed for modern production environments where speed, flexibility, and compact rigging are essential. Its yoke-free lightweight construction allows it to mount directly to compatible fixtures without additional support systems, making it ideal for solo operators and fast-moving shoots.
Key Features
• Variable zoom projection system: 25°–45° beam angle control
• Designed for Nanlite PJ-BM Bowens projection ecosystem
• Compatible with Forza, FC, and FS series COB fixtures
• Integrated optical zoom lens for flexible beam shaping
• 360° rotatable lens barrel for fast orientation control
• Internal metal shutters for precise light cutting

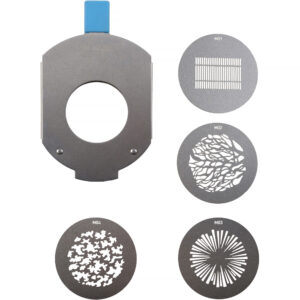

• Supports M-size gobos for pattern projection
• Includes gel frame for colour effects
• Lightweight yoke-free design for direct mounting
• High-output optical efficiency for improved light control
Specifications
• Product Type: Variable zoom projection attachment
• Brand: Nanlite
• Model: PJ-BM 25–45°
• Beam Angle: 25°–45° adjustable
• Mount Type: Bowens S-mount
• Optical System: Integrated zoom lens projection system
• Rotation: 360° lens barrel rotation
• Gobo Compatibility: M-size gobos (via holder system)
• Accessories: Iris compatible (sold separately)
• Function: Beam shaping, projection, zoom control
• Application: Film, broadcast, photography, studio lighting
Compatibility
• Nanlite Forza 300 II / 500 II / 720 series
• Nanlite FC-300B / FC-500B / FC-500C
• Nanlite FS series COB fixtures
What’s in the Box
• 1 × Nanlite PJ-BM 25–45° Zoom Projection Attachment
• 1 × Gobo Holder
• 1 × Gel Frame

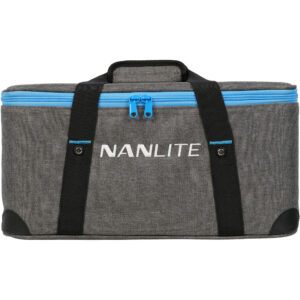

• 1 × Protective Carry Case
• 1 × Front & Rear Protective Covers
