Overview
The Kupo 20' x 20' Butterfly Frame Kit (KH-20) is a professional large-format overhead frame system designed for high-end film production, television, commercial photography, and broadcast environments where extensive light control is required. Engineered for mounting diffusion fabrics, silks, scrims, nets, solids, and bounce materials, this heavy-duty butterfly frame kit enables cinematographers and lighting crews to shape, soften, block, or redirect large light sources with precision across wide shooting areas.
Constructed from durable 30 mm square-section aluminium tubing, the KH-20 is built to withstand demanding professional production use while remaining practical for transport and assembly on location. The frame features Kupo’s slot-and-pin locking system, allowing for fast, secure assembly without complicated tools, making it ideal for large-scale productions where efficiency on set is essential.
The expansive 20' x 20' frame size is particularly suited to exterior daylight control, large commercial shoots, automotive productions, wide interview setups, and narrative filmmaking requiring broad overhead diffusion or negative fill. The frame components are designed to store neatly within the corner sections during transport, helping reduce misplaced hardware and simplifying storage for rental houses and grip departments.
Included ear-type frame supporters provide secure mounting onto heavy-duty grip heads and stands, ensuring reliable overhead support for professional lighting textiles and diffusion materials. Whether used with artificial silk, ultra bounce, grids, black solids, or nets, the KH-20 provides a dependable large-scale lighting control solution trusted by professional grip and lighting crews worldwide.
Key Features
• Professional 20' x 20' butterfly frame kit for large-scale overhead light control
• Designed for diffusion fabrics, silks, scrims, nets, solids, and bounce materials
• Heavy-duty 30 mm square-section aluminium tubing
• Slot-and-pin locking system for quick and secure assembly

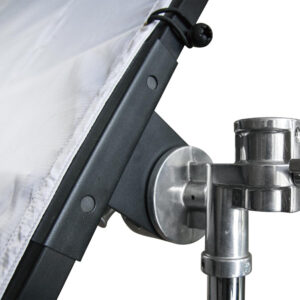

• Ear-type frame supporters for stable mounting onto grip heads and stands
• Large-format frame ideal for exterior daylight control and commercial productions
• Frame tubes store within corner sections for easier transport and storage
• Lightweight yet durable construction for professional studio and location use
• Suitable for film production, television, photography, and broadcast applications
• Ideal for shaping, softening, blocking, or redirecting large light sources
• Compatible with industry-standard butterfly textiles and grip hardware
Specifications
• Model: KH-20
• Product Type: Butterfly Frame Kit
• Frame Size: 20' x 20' (6.1 m x 6.1 m)
• Material: Aluminium
• Tube Size: 30 mm square-section tubing
• Finish: Black
• Weight: 28.5 kg
• Assembly System: Slot-and-pin lock design
• Mounting Type: Ear-type frame supporters for grip heads and stands
• Application: Overhead lighting control and textile mounting

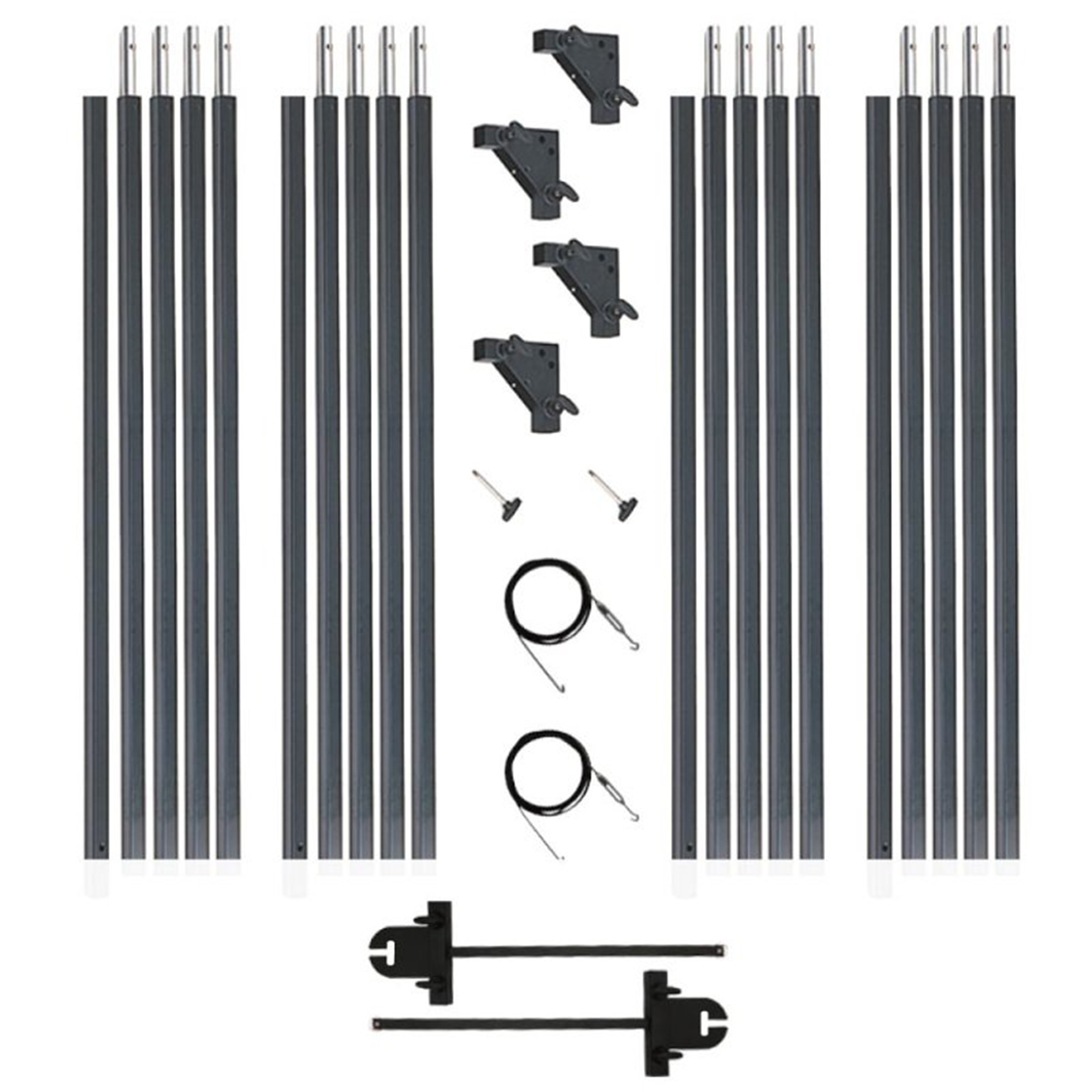

What’s in the Box
• 4 × 20' Butterfly Frame Female Tubes (BF200)
• 2 × Ear-Type Frame Supporters (FH10)
• 2 × Frame Corners (FC15A)
• 2 × Frame Corners with Nuts (FC15B)
• 2 × Corner Bolts (A17)
